Hydraulic steel coils upender

Hydraulic Tilter ,upender
Hydraulic Tilter ,upender

Hydraulic  steel coils upender

Specifications

Steel Coil Turnover Machine
1. Rational designed structure
2. Loading capacity about 1-30 tons
3. used for metal coils or mould
4. CE approved

Application

 This  packaging  is suitable for different specifications of goods to turnover as requested, which achieve the goal of conversion between vertical and horizontal operation procedure. It is widely used in metallurgy, mold industries, paper roller making, refrigeration, etc.

Features

1. Durable and strong structure design.

2. Unique double sprocket transmission, bevel gear-the turbine worm reducer.

3. Four roller institutions, polyurethane wrapped outside.

4. Safe, stable and fast frequency conversion with more paragraphs speed control.

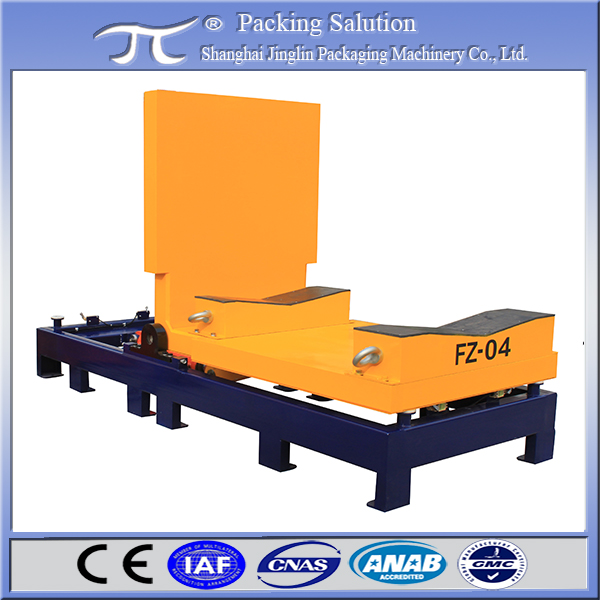

hydraulic upender
hydraulic upender for palletized steel coils

Technical Data:

Items FZ-04 FZ-06 FZ-10 FZ-15 FZ-30 FZ-02-180
Max loading 4T 6 10T 15 30 2
Turn-over speed 50min±10% 50min±10% 60min±10% 80min±10% 120min±10% 100min±20%
Transfer mode Double chain/four roller/

Oblique& worm speed reducer

Double chain/four roller/

hard tooth-face speed reducer

Double chain/four roller/

Oblique& worm speed reducer

Power output 1.0kw 1.5kw 2.2kw 3.7kw 5.5kw 1.5kw
Ratio 1:286 1:286 1:286 1:286 1:286 1:286
Perspective 90º 90º 90º 90º 90º 180º
Power voltage 3 phase 380V 3 phase 380V 3 phase 380V 3 phase 380V 3 phase 380V 3 phase 380V
Working mode Semi-auto/ remote control Semi-auto/ remote control Semi-auto/ remote control Semi-auto/ remote control Semi-auto/ remote control Semi-auto/ remote control
