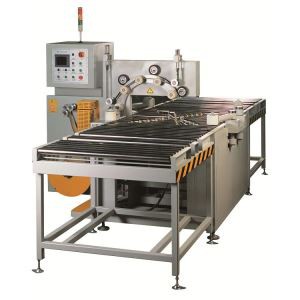

# COPPER STRIP WRAPPING MACHINE
With an aim to fulfill varied requirements of our valued clients, we are engaged in offering the high-performance copper strip wrapping machine which is applied for automatic packing a wide range of copper strips in a horizontal state, to make the copper strip well-protected from the influence of water, dust, rust, etc. with high efficiency and nice packaging for saving material and labor cost.
## MACHINE APPLICATION:
The copper strip wrapping machine has garnered attention from various industries as it allows for the automatic packing of copper strips in a horizontal state, making the copper strip well-protected from the influence of water, dust, rust, and other environmental factors. The machine is ideal for those looking to save material and labor costs in their operations.
## BASIC FEATURES:
The copper strip wrapping machine offers several features to make the packaging process seamless and efficient. These features include:
– Automatic or semi-auto control
– Motor-driven powered roller conveyor for automatic loading & offloading of the copper coils
– High anti-friction PU adopted for friction wheels
– Whole casting structure for the turning ring
– Adjustable level height of the turning ring
– Synchronous wrapping system for wrapping two different materials at one operation process
– Supportive and protective rollers wrapped by PU
– Special tension control system for the packing material
– Central positioning for the best packaging performance
– Option to choose from different packing materials
## MAIN PARAMETERS:
The copper strip wrapping machine comes with the following specifications:
| Parameter | GW200-N | GW200-W |
| —————————|————|————|
| Coil OD | 600-1200mm | 600-1200mm |
| Coil ID | ≥400mm | ≥400mm |
| Coil width | ≤200mm | ≤200mm |
| Coil weight | ≤300KG | ≤500KG |
| Cutting type | Manual cutting | Auto cutting |
| Ring speed | About 70r/min | About 80r/min |
| Wrapping material | Knit tape, compound paper tape, stretch film, non-woven fabrics, etc. | Knit tape, compound paper tape, etc. |
| Material width | 100-120mm | 80-100mm |
| Material OD | 200mm | 450mm |
| Material ID | 55mm | 55mm |
| Power output | 1.5KW | 2.2KW |
| Power supply | AC/380V | AC/380V |
| Air supply (6-8kgf/cm²) | Without | With |
| Circular labeling system | Optional | Optional |
| Synchronous wrapping system | Optional | Optional |
The machine can be custom designed according to specific object size.
## OPERATION:
The automatic coil wrapping machine includes a powered feeding conveyor, automatic wrapping station, and powered discharging conveyor. The operation process is as follows:
– Load the coil manually or automatically from the front end of the production station to the feeding conveyor of the packing machine.
– The conveyor transfers the coil to the wrapping station automatically.
– Automatic coil centering takes place.
– Automatic coil wrapping occurs.
– The machine automatically cuts the wrapping material.
– The packed coil is transferred out from the wrapping station.
– Move the coil away from the machine and prepare for next packaging.
## CONCLUSION:
The copper strip wrapping machine is an ideal addition to the manufacturing process for those looking to save on material and labor costs. It offers an automatic packing solution that ensures the copper strips are protected from external environmental factors such as rust, dust, water, etc. The machine offers several features such as tension control, adjustable turning ring height, and the option to choose from different packing materials. With the ability to efficiently pack up to 500KG coils, the copper strip wrapping machine is perfect for various industries.
