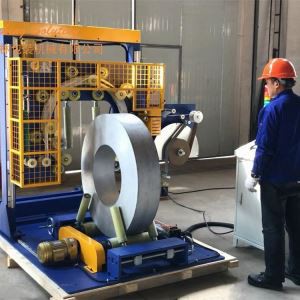

# METAL COIL PACKING MACHINE
Metal coil packing machines are used to wrap different ring-shaped products such as steel coils, copper coils, aluminum coils, wire coils, pipe coils, cable coils, tires, and more. The machine uses stretch films, papers, or any other packing material available for packaging. The modern metal coil packing machine is easy to operate and maintain and saves labor force and time. This article discusses the basic features, main parameters, spare parts, and after-sales services of a metal coil packing machine.
## MACHINE APPLICATION
The metal coil packing machine is developed for packing different ring-shaped products including steel coils, aluminum coils, copper coils, wire coils, cable coils, pipe coils, tyres, and more by stretch film, paper, or other packing material available. The machine is easy to operate and maintain and greatly saves labor force and time from traditional manual packing.
## BASIC FEATURES
The following are the basic features of the metal coil packing machine:
– The wrapping unit is moveable, safe, and convenient for coil.
– Automatic control by PLC program.
– Standard modular design of the metal coil wrapping machine, stable performance, convenient maintenance.
– Solid whole casting structure for turning ring.
– Height of the wrapping ring adjustable for metal coils with different OD.
– The wrapping tape is cut automatically by the cutter.
– The indicator lights will alarm automatically when an error occurs.
– The rollers are wrapped by PU to protect the products effectively.
– Various kinds of packing material can be chosen according to needs.
– HMI touch can be optioned for more smart operation.
## MAIN PARAMETERS
The following are the main parameters of the metal coil packing machine:
| Model | GD300 | GD600 |
|——-|——-|——-|
| Type | Wrapper moveable | Wrapper moveable |
| Coil OD | 700mm-1500mm | 700mm-1500mm |
| Coil ID | 508mm/610mm | 508/610mm |
| Coil width | 20mm-300mm | 30mm-600mm |
| Coil weight | 50kg-2000Kg | 50kg-3000Kg |
| Roller speed | 5-8m/min | 5-8m/min |
| Ring speed | 80r/min | 80r/min |
| Power supply | AC/380V/50Hz | AC/380V/50Hz |
| Air supply | 6-8kgf/cm² | 6-8kgf/cm² |
| Driven type | Electric | Electric |
| Power output | About 4.0KW | About 4.0KW |
| Wrapping material | Knit tape/VCI paper, etc: width:80-100mm; ID:55mm; OD≤500mm Stretch film: width:80-100mm; ID:50mm;OD≤150mm | Knit tape/VCI paper, etc: width:80-100mm; ID:55mm; OD≤500mm Stretch film: width:80-100mm; ID:50mm;OD≤150mm |
| Automatic mechanical hand | Optional | Optional |
| HMI screen | Optional | Optional |
| Synchronous wrapping system | Optional | Optional |
Note: the data is only for reference; the machine can be custom designed according to specific object size.
## LIST OF MAIN SPARE PARTS
The following are the list of main spare parts of the metal coil packing machine:
| Large friction wheel | 2 Pcs | Factory standard |
|———————|——-|—————–|
| Tape storing wheel | 2 Pcs | Factory standard |
| Fuse | 4 Pcs | Standard |
| Bearing | 2 Pcs | Standard |
| Tool box | 1 set | Standard |
| Packing material | 5 kg | Standard |
| Air Pipe Connector | 2 Pcs | Standard |
## AFTER-SALES SERVICE
The following are the after-sales services of the metal coil packing machine:
– One year warranty, lifelong technical assistance, and support.
– Engineers available to service machines overseas for installation and commissioning.
– Response to any problems within 24 hours.
## CONCLUSION
Metal coil packing machines are used to wrap different ring-shaped products using stretch films, papers, or any other available packing material. They are easy to operate and maintain and save labor force and time from traditional manual packing. The basic features, main parameters, spare parts, and after-sales services of a metal coil packing machine are vital factors to consider when purchasing one. The metal coil packing machine can be custom designed according to specific object size.
