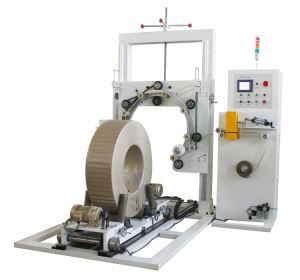

# PACKING MACHINE FOR STEEL COIL
Steel coils are widely used for various industrial and construction applications, but they can be difficult to handle and transport due to their size and weight. To solve this problem, packing machines for steel coils have been developed. These machines wrap the steel coils with protective materials to prevent damage and make them easier to handle and transport.
## MACHINE APPLICATION
The packing machine for steel coils can also be used for other circular objects such as wire coils, copper coils, aluminum coils, cable coils, pipe coils, and bearings. This machine can protect the products from water, dust, rust, and scratches, making them more convenient to store and transport. The use of a packing machine can greatly simplify the packing operation and free up labor forces.
## BENEFITS OF MACHINE
The packing machine for steel coils offers numerous benefits for industrial and construction applications, including:
* High packing efficiency
* Great labor cost savings
* Custom packing solutions based on specific coil size
* Low cost of consumables and energy
* Machine operating at low noise levels
* Safe and easy operation
* Easy operation via HMI
## BASIC FEATURES
The basic features of the packing machine for steel coils include:
* Moveable wrapping station for convenient coil loading.
* PLC and HMI touch screen for automatic operation.
* Adjustable overlapping degree by a frequency converter.
* Adjustable packaging material tension.
* Safe operation with soft start/stop functions.
* Up/down support rollers protection from coil shaking.
* Separate electrical box for remote operation with fault alarm.
* Reinforced ring and structure, firm and stable.
* Automatic packing material cutting and holding.
* Packing material stock mechanism with guard rails.
* Ring jog, ring reset.
* Special brake for the tape release device to avoid material folding.
* Widely packing material applicable: LLDPE stretch film; PE film: Goffered paper; VCI paper; woven tape.
## MAIN PARAMETERS
The packing machine for steel coils comes in different models with varying specifications. The main parameters of some popular models are listed below:
|
Model |
GD300 |
GD600 |
|
Type |
Trolley type |
Trolley type |
|
Coil width |
≤300 |
150mm-600mm |
|
Coil OD |
≤1500 |
800mm-1600mm |
|
Coil ID |
508/610mm |
508mm/610mm |
|
Coil weight |
≤2000Kg |
300kg-6000Kg |
|
Ring turning speed |
Appr. 20-90r/min |
Appr. 20-80r/min |
|
Roller speed |
5-8m/min |
5-8m/min |
|
Total output |
4.0KW |
7.5KW |
|
Power supply |
AC/380V/50Hz |
AC/380V/50Hz |
|
Air supply |
6-8kgf/cm2 |
6-8kgf/cm2 |
|
Packing material |
Compound paper/VCI paper/Knit tape: width:80-100mm; ID:55mm; OD≤500mm |
Compound paper/VCI paper/Knit tape: width:80-100mm; ID:55mm; OD≤500mm |
|
Stretch film: width:80-100mm; ID:50mm;OD≤150mm |
Stretch film: width:80-100mm; ID:50mm;OD≤150mm |
|
|
Synchronous wrapping system |
Optional |
Optional |
|
Automatic manipulator |
Optional |
Optional |
Note that these parameters are only for reference, and the machine can be custom designed according to specific object size.
## CONCLUSION
In conclusion, the packing machine for steel coils offers several benefits for industrial and construction applications. With its high packing efficiency, labor cost savings, and custom packing solutions based on specific coil size, this machine can greatly improve the handling and transport of steel coils and other circular objects. Its adjustable features, safe operation, and easy HMI operation make it an ideal choice for any industrial or construction setting.
