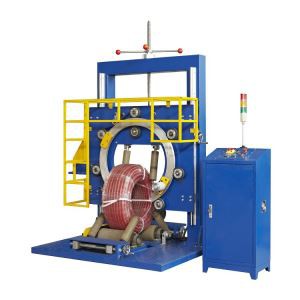

# PIPE COIL PACKING MACHINE
The pipe coil packing machine is a highly advanced technology-based machine designed to pack various products including plastic coils, wire coils, cable coils, tires, and other ring-type objects. This machine is highly effective in protecting these products from water, dust, rust, damage and ageing. The article will provide in-depth information on the features and technical data of the pipe coil packing machine.
## MACHINE APPLICATION
The main purpose of the pipe coil packing machine is to pack various objects safely and securely. It is widely used in packaging plastic coils, wire coils, cable coils, tires and other ring type objects. The machine is perfect for businesses that have a large volume of products and need a quick and efficient method of packaging them.
## INSTALLATION
The pipe coil packing machine is easy to install and can be mounted on flat and hard ground where the ground load is more than 1 ton/m². The installation process is quick and straightforward, and the machine can be up and running within a few hours.
## BASIC FEATURES
The pipe coil packing machine comes equipped with a number of advanced features that make it a highly effective machine for packaging various objects. Here are some of the features that make the pipe coil packing machine highly efficient:
### Double-Rub Wheel Devices
The double-rub wheel devices make the machine more stable, safer and energetic. This helps in improving the overall efficiency of the machine.
### Overlap Rate Adjustment
The machine comes equipped with a converter that allows users to adjust the overlap rate according to their specific requirements.
### Adjustable Ring Height
The height of the ring centre can be adjusted to suit the size of the product being packaged.
### Tension Adjustment
The wrapping material tension can also be adjusted to ensure that the packaging is tight and secure.
### Multiple Packing Material Options
The machine can be used with different packing materials including stretch film, knit tape and paper tape. This makes it a versatile machine that can be used with a variety of products.
### Up and Down Supporting Rollers
The machine comes equipped with up and down supporting rollers that are used to fix the coil in place.
### Polyurethane Covered Supporting Rollers
The supporting rollers are covered by polyurethane, which makes them more durable and long-lasting.
### Separate Electrical Box
The machine comes with a separate electrical box for safe operation, technical testing and trouble-shooting.
### Guardrails
Guardrails are also fitted to the machine to ensure safe operation.
### Soft Start and Stop Functions
The soft start and stop functions ensure safe operation of the machine.
### Adjustable Ring and Roller Speed
The ring speed and roller speed can be adjusted with the help of a converter.
### Automatic Stop Settings
The packaging time can be set on the control panel for automatic stop.
### Reinforced Ring and Structure
The machine has a reinforced ring and structure that makes it firm and stable, allowing it to have a long life span.
### Simple Structure
The machine has a simple structure, which makes it easy to operate and maintain.
## TECHNICAL DATA
The technical data of the machine is a crucial aspect that users need to be aware of before making a purchase. Here are the technical specifications of the pipe coil packing machine:
### ITEMS
GS300-N
### Object Height
≤300mm
### Object OD
500-1000mm
### Object ID
≥300mm
### Object Weight
≤500kg
### Roller Speed
2-4m/min
### Ring Speed
30-50r/min
### Suitable Material
Stretch film, Knit tape, paper tape etc.
### Material Width
100-150mm
### Material OD
150mm
### Material ID
55mm
### Power Output
About 1.5kw
### Power Voltage
380V,50HZ
### Note
The data provided above is only for reference, and the machine can be custom-designed according to the specific size of the object.
## CONCLUSION
The pipe coil packing machine is an advanced technology-based machine that is highly effective in packaging various products. The machine is easy to use, comes with advanced features, and is highly efficient, making it an excellent investment for businesses that need to package their products quickly and efficiently. The technical data provides detailed information about the machine’s capabilities, making it easier for users to make an informed decision when purchasing the machine. The pipe coil packing machine is an all-in-one solution that helps businesses streamline their packaging process and improve overall efficiency.
