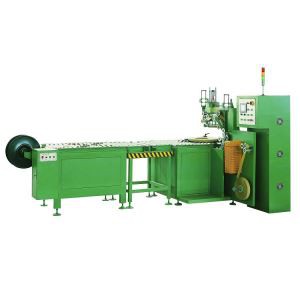

# STEEL STRIP PACKING MACHINE
Are you looking for a steel strip packing machine that can effectively protect your steel strip coils from dust, water, rust, and scratches? Look no further, as the steel strip packing machine is the perfect solution. This machine is especially ideal for metallurgical industries that use steel strips, copper strips, wire coils, and more. The machine is highly automated and can be equipped with a conveyor to achieve automatic and efficient packing. In this article, we will be discussing the features, technical parameters, and benefits of the steel strip packing machine.
## APPLICATION
The steel strip packing machine is a versatile machine that can pack steel strip coils that are in a horizontal status (eye vertical). It has become the preferred choice for metallurgical industries worldwide, including the steel strips, copper strips, wire coils, and more. The machine is designed to protect your valuable products from dust, water, rust, and scratches.
## BASIC FEATURES
The steel strip packing machine comes with many advanced features that make it stand out from other machines in the market. Some of these features include:
1. Highly automation; safe and convenient operation,
2. Components of well-known brands are adopted in the machine.
3. The overlapping of packing tape is adjustable by inverters.
4. The level height of the turning ring is adjustable according to different coil sizes.
5. Packing tape tension is adjustable.
6. Up and down supporting rollers are available to fix the coil.
7. Supporting rollers are covered by polyurethane.
8. Separate electrical box for safe operation.
9. Separate material carriage and cutter device make the packing more efficient.
10. Automatic packing material cutting in wrapping.
11. PLC and HMI systems can be adopted for automatic program setting.
## TECHNICAL PARAMETERS
The steel strip packing machine comes with specific technical parameters. These parameters are only for reference purposes since the machine can be custom designed according to your specific object size. The technical parameters include:
| ITEMS | GW600 | GW900 | GW1200 |
|—————|———-|———-|———-|
| Object height | ≤300mm | ≤300mm | ≤300mm |
| Object OD | ≤600mm | ≤900mm | ≤1200mm |
| Object ID | ≥200mm | ≥300mm | ≥300mm |
| Object weight | ≤250kg | ≤400kg | ≤600kg |
| Wrapping material | Knit plastic tape/ crepe paper | Knit plastic tape/ crepe paper | Knit plastic tape/ crepe paper |
| Ring speed | 20~80r/min | 20~80r/min | 20~80r/min |
| Overlap rate | 30%~70% | 30%~70% | 30%~70% |
| Power output | About 1.5kw | About 1.5kw | About 2.0kw |
| Power supply | 380V, 3phase 5wires | 380V, 3phase 5wires | 380V, 3phase 5wires |
| Air source | 6~8kgf/cm² | 6~8kgf/cm² | 6~8kgf/cm² |
## BENEFITS OF STEEL STRIP PACKING MACHINE
1. The steel strip packing machine is highly automated, which makes it easy to operate and saves time and money.
2. The overlapping of packing tape is adjustable, which gives the user more control over the packing process.
3. The level height of the turning ring is adjustable, which makes it easy to pack coils of different sizes.
4. The machine is equipped with advanced safety features to ensure the safety of the operator.
5. The steel strip packing machine protects the valuable products from dust, water, rust, and scratches.
6. The machine is custom designed according to your specific object size, which enhances efficiency and productivity.
7. The machine can be equipped with a conveyor to achieve automatic and effective packing.
## HOW TO CHOOSE THE RIGHT STEEL STRIP PACKING MACHINE
Choosing the right steel strip packing machine can be a daunting task, but with the right information, it’s an easy feat. Here are some factors you need to consider:
– Object size: You need to choose a steel strip packing machine that is compatible with the size of your objects. A machine that is too small or too big may not work efficiently.
– Wrapping material: The wrapping material is an essential element of the packing process. You need to choose a machine that can work efficiently with different wrapping materials.
– Automation: Automation is crucial in ensuring the process is efficient and effective. You need to choose a machine that is highly automated to save time and money.
– Cost: The cost of the machine is an important factor that needs to be considered. You need to choose a machine that is affordable and provides value for your money.
## CONCLUSION
The steel strip packing machine is an essential tool for metallurgical industries worldwide. It offers numerous benefits, including protecting valuable products from dust, water, rust, and scratches, and enhancing efficiency and productivity. When choosing a steel strip packing machine, you need to consider factors such as object size, wrapping material, automation, and cost. If you’re looking for a reliable and efficient machine, the steel strip packing machine is the perfect choice.
