# Copper Strip Packing Machine: Protecting and Effective Coil Packing Solution
Coil packing is an integral part of the distribution process, especially for heavy objects such as copper strips. Delivering undamaged copper strips to end-users involves the use of reliable and efficient packaging equipment, such as the copper strip packing machine. This machine enables companies to pack and protect coils with various materials, allowing them to be transported safely. In this article, we will look at the role of copper strip packing machines in industrial coil packaging applications, its features, main parameters, and supply list.
## Machine Application

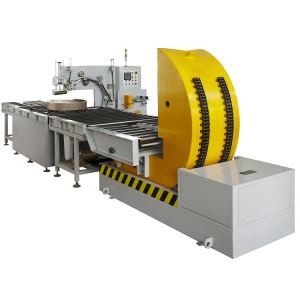

The copper strip packing machine is an advanced packaging equipment designed to meet the needs of industries involved in the production, transportation, and storage of copper strips, aluminum strips, and other materials. This machine provides protective and effective coil packing to ensure that the objects are delivered in good condition. It is also equipped to connect with the production line, making it an integrated online packing device.
## Basic Features
The copper strip packing machine has several basic features that enhance its functionality and flexibility. These features include:
### Wrapping Station Form
The machine's wrapping station form is on-line conveying of objects, allowing for easier and faster packing.
### PLC Control and HMI Operation
The machine is equipped with a programmable logic controller (PLC) with a human-machine interface (HMI) operation. This feature enables easy and accurate control of the machine, resulting in high-quality packaging.
### Supportive Rollers
The machine has supportive rollers that lift the coil from the conveyor, ensuring that it is wrapped efficiently.
### Automatic Positioning
The copper strip packing machine has an automatic positioning feature that makes the coil stop at specific positions for wrapping, resulting in consistent and uniform packaging.
### Automatic Coil Centering
This feature ensures that the copper strips are packaged efficiently by centering them automatically.
### Working Modes
The copper strip packing machine has both manual and automatic working modes that can be chosen for flexible operation.
### Frequency Control
Frequency control of motor speed and material overlapping rate can be adjusted according to different requirements. This feature ensures that the copper strips are packed tightly and efficiently, reducing the probability of damage during transportation.
### Different Wrapping Requirements
Different wrapping requirements can be achieved by setting the corresponding parameters in the PLC. The machine can wrap the coil with plastic knit tape, crepe paper tape, stretch film, non-woven fabrics, and other materials.
### Automatic Material Cutting
The machine's wrapping material is cut automatically, resulting in high efficiency and a uniform wrapping process.
### Indicator Alarms
The copper strip packing machine has an indicator alarm that sounds automatically when trouble occurs. This feature makes it easier to detect and troubleshoot machine issues, ensuring that the machine operates smoothly.
### Novel Design
The copper strip packing machine has a novel design that enables automatic adjustment of material tension. This feature ensures that the machine packs the coils tightly and efficiently.
### Electrical Cabinet
The machine has a separate electrical cabinet that makes operation and maintenance easier.
### Conveyor Length
The conveyor length can be made according to specific needs, allowing the machine to be flexible and adaptable in different industrial settings.
## Main Parameters
The copper strip packing machine has several main parameters that can differ depending on the model, including:
### Model
The two models of the copper strip packing machine are GW300-N and GW300-W.
### Object OD
The machine can pack copper strips with an object outer diameter (OD) of 600-1200mm.
### Object ID
The machine can also pack copper strips with an object inner diameter (ID) of ≥ 400mm.
### Object Width
The maximum object width that the machine can pack is ≤ 300mm.
### Object Weight
The machine can handle object weight of ≤ 300KG for GW300-N, and ≤ 500KG for GW300-W.
### Cutting Type
The machine has two types of cutting, manual cutting for GW300-N, and automatic cutting for GW300-W.
### Ring Speed
The machine has an approximate ring speed of 70r/min for GW300-N, and 80r/min for GW300-W.
### Packing Material
The packing material that the machine uses includes plastic knit tape, crepe paper tape, stretch film, non-woven fabrics, etc.
### Material Width
The material width for GW300-N is between 100-120mm, while for GW300-W is between 80-100mm.
### Material OD
The maximum material outer diameter (OD) for GW300-N is 200mm, while for GW300-W is ≤ 450mm.
### Material ID
The material inner diameter (ID) for both models is 55mm.
### Power Output
The approximate power output for GW300-N is 1.5KW, while for GW300-W is 2.2KW.
### Power Supply
The machine has a power supply of AC/380V/50Hz.
### Air Supply
The machine does not require air supply for GW300-N, while for GW300-W, the air supply is between 6-8kgf/cm2.
### Circular Labeling System
The copper strip packing machine offers the option of a circular labeling system.
### Synchronous Wrapping System
The machine also has an option for a synchronous wrapping system.
### Tilting Device
The machine has an optional tilting device.
Note: The parameters above are only for reference, the machine can be custom-designed according to specific object sizes.
## Supply List
The copper strip packing machine comes with a supply list that includes:
### In-feeding Conveyor
One in-feeding conveyor.
### Wrapping Machine
One wrapping machine.
### Out-feeding Conveyor
One out-feeding conveyor.
### Electrical Cabinet, Guardrail, etc.
One set of electrical cabinet, guardrail, and other supporting equipment.
### PLC & HMI Program Control System
The machine also has a PLC and HMI program control system that enhances its efficiency.
## Conclusion
Copper strip packing machines are essential assets in industrial and manufacturing settings. The machine provides protective and effective coil packing solutions, ensuring that end-users receive products in good condition. Its advanced features and parameters make it a flexible and adaptable machine that can cater to various needs. With the copper strip packing machine, companies can streamline their coil packaging process, resulting in reduced damage, better efficiency, and increased customer satisfaction.
