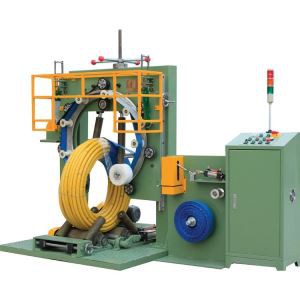

# Corrugated Pipe Packing Machine: Protect Your Products with Ease
Are you tired of your coiled products getting damaged during transportation? Do you want a simple yet effective solution to protect your products from scratches, moisture, and dust? Look no further than the corrugated pipe packing machine.
This specialized machine can wrap a variety of coiled products, including PE pipe coils, drip pipe coils, garden pipe coils, hose coils, tube coils, wires, tires, and more. You can even wrap two different materials together for better protection. In this article, we'll explore the basic features, technical data, and other important details about this efficient machine.
## Understanding the Corrugated Pipe Packing Machine
The corrugated pipe packing machine is a simple yet robust machine designed to protect your coiled products during transportation and storage. It features a simple structure, easy operation and maintenance, and can wrap products with a wide range of sizes.
The machine comes with a PLC automatic control system that allows you to adjust the material overlapping and tension according to your needs. It also has an indicator lamp that alarms automatically when errors occur, giving you ample time to address the issues promptly.
## Exploring the Basic Features
Let's delve deeper into the basic features of the corrugated pipe packing machine:
### Simple Structure
The machine has a simple and straightforward design that makes it easy to operate and maintain. You don't have to worry about complex mechanisms or confusing controls when using this machine.
### Adjustable Overlapping
You can adjust the packing material overlapping with the help of a converter. This feature allows you to adjust the degree of overlap according to your specific needs.
### Two Different Materials
You can wrap two different types of materials together for even better protection. This is particularly useful when you need extra protection for your products.
### PLC Automatic Control
The machine comes with a PLC automatic control system that enables you to automate the control of the machine. This allows you to perform operations more efficiently and accurately.
### Error Alarm
The machine has an error alarm system that alerts you when errors occur. This gives you enough time to address the issue before it escalates further.
### Adjustable Tension
The overlap degree and material tension can be adjusted according to your specific requirements. This gives you more control over the machine and allows you to customize the output according to your needs.
### Wide Range of Sizes
The machine can pack a wide range of coiled products with varying sizes. This makes the machine versatile and suitable for different types of products.
### Adjustable Ring Height
The ring height can be adjusted to adapt to different coil diameters. This feature ensures that the machine can be used for different sizes of coiled products.
### Various Packing Materials
The machine allows you to choose different packing materials depending on your needs. This gives you more flexibility when it comes to customizing the output.
### Anti-Wearing PU
The machine uses anti-wearing PU for its friction wheels. This ensures that the machine lasts longer and is more durable.
### Guardrails
The machine has guardrails for the moving parts, ensuring safe operation at all times. This feature is particularly useful when you have to operate the machine for extended periods.
## Technical Data
Let's take a look at the technical data of the corrugated pipe packing machine:
| Items | GS300 | GS500 | GS800 |
| --------------------|----------|----------|-----------|
| Pipe coil height | ≤300mm | ≤500mm | ≤800mm |
| Pipe coil OD | 500-1000mm | 600-1200mm | 1000-2000mm |
| Pipe coil ID | ≥300mm | ≥400mm | ≥700mm |
| Roller speed | 2-4m/min | 2-4m/min | 2-3m/min |
| Ring speed | 30-50r/min | 30-50r/min | 20-40r/min |
| Applicable material | Stretch film, Knit tape, paper tape, etc. | Stretch film, Knit tape, paper tape, etc. | Stretch film, Knit tape, paper tape, etc. |
| Material width | 100-150mm | 100-150mm | 150mm |
| Material OD | 150mm | 150mm | 200mm |
| Material ID | 55mm | 55mm | 55mm |
| Power output | About 1.5kw | About 2.0kw | About 3.0kw |
| Power voltage | 380V, 50HZ | 380V, 50HZ | 380V, 50HZ |
## Customizable Design
The corrugated pipe packing machine is highly customizable. You can adjust the machine's size, specifications, and other parameters to suit your specific requirements.
## Conclusion
The corrugated pipe packing machine is an excellent solution for protecting coiled products during transportation and storage. The machine comes with various features such as adjustable overlapping, two different materials, and a PLC automatic control system. It's also highly customizable and can be designed according to your specific needs.
With this machine, you can ensure that your coiled products are protected from scratches, moisture, and dust. The machine is also durable and easy to operate and maintain, making it an excellent investment for any business looking to protect their products.
