# Stainless Steel Wrapping Machine
Steel manufacturers require advanced and safe technology to automate their steel packaging processes and protect their products from external factors. The stainless steel wrapping machine is an automatic packing solution designed to address the needs of such manufacturers. This article will discuss the features, specifications, and applications of the stainless steel wrapping machine.
## Machine Application
The stainless steel wrapping machine is a top-quality automatic packing solution suitable for various ring-shaped steel products, including steel wire coils, strand coils, pipe coils, copper coils, among others. The machine facilitates the loading and handling of heavy steel coils and seals & protects the wrapped steel coil from dust, rust, and other harmful factors.
## Basic Features
The stainless steel wrapping machine comes with several features, including:
- High-quality brands for main machine components
- Semi-auto and automatic working modes for flexible operation
- PLC program and HMI for automatic operation
- Safe and reliable trolley for convenient loading of objects
- Guarding cover, soft start and stop functions for safe operation
- Limit switch, sensors, and safe programs for safe operation
- Overloading protection for the packing machine
- Adjustable turning ring height for different steel coil diameters
- Supportive rolls driven by motors for protective wrapping
- Automatic cutting of wrapping materials by program according to different coil sizes
- Independent electrical control cabinet for easy operation
- Reinforced ring and machine structure for firmness, stability and long lifespan
## Main Parameters
The following table shows the main parameters of the stainless steel wrapping machine:
Model | GD300 | GD600 | GD800
--- | --- | --- | ---
Coil width | ≤300 | 150mm-600mm | 400mm-800mm
Coil OD | ≤1500 | 800mm-1600mm | 1000mm-1900mm
Coil ID | 508/610mm | 508mm/610mm | 508mm/610mm
Coil weight | ≤2000Kg | 300kg-6000Kg | 1000Kg-12000kg
Ring speed | Appr. 20-90r/min | Appr. 20-80r/min | Appr. 20-60r/min
Roller speed | 5-8m/min | 5-8m/min | 5-8m/min
Power output | About 4.0KW | About 7.5KW | About 10.5KW
Power supply | AC/380V/50Hz | AC/380V/50Hz | AC/380V/50Hz
Air supply | 6-8kgf/cm² | 6-8kgf/cm² | 6-8kgf/cm²
Packing material | Compound paper, VCI paper, Knit tape/Stretch film | Compound paper, VCI paper, Knit tape/Stretch film | Compound paper, VCI paper, Knit tape/Stretch film
Synchronous wrapping system | Optional | Optional | Optional
Automatic manipulator | Optional | Optional | Optional
Note: The machine's specifications are for reference only, and it can be custom-designed according to specific object sizes.
## Additional Points
Other additional points about the machine include:
- All switchgear and isolation transformer, control hardware provided by JLPACK and housed in a panel
- All field wiring with push button stations, terminal boxes, and junction boxes provided
- All electrification with field I/P sensors, PRX, LS with solenoids, and other outputs included in line
- Licensed software for PLC + HMI + DRIVE provided
## Images

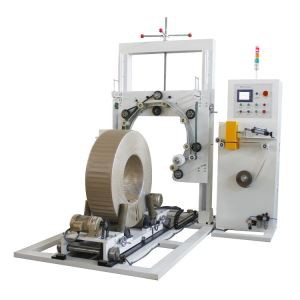

The following images show different parts and angles of the stainless steel wrapping machine.
## Conclusion
The stainless steel wrapping machine is a high-quality, reliable, and safe packing solution suitable for modern steel manufacturers. It comes with advanced features, flexible operating modes, and custom design options to meet various steel coil sizes and shapes. Additionally, it has undergone rigorous tests and upgrades to ensure high wrapping efficiency and long life-span. Contact JLPACK, the leading manufacturer, supplier, and cheap stainless steel wrapping machine, to order yours today.
