Automating Timber Placement: Between Steel Coils in Stacking

Struggling with the slow, hazardous manual placement of timber dunnage between heavy steel coils? This bottleneck impacts efficiency and safety on your packing line. Imagine a streamlined process where timbers are placed precisely, every time, boosting throughput and protecting both your product and your workforce through automation.

Automatic timber placement between steel coils during stacking is primarily achieved using specialized timber feeder stacking machines integrated into automatic coil packing lines. These automated systems precisely handle, arrange, and position timber dunnage between coil layers, ensuring consistent separation and support. This enhances stack stability, reduces manual labor risks, increases packing speed, and protects coils during handling and transport, optimizing the entire coil packaging workflow.

This article delves into the technology, benefits, integration process, and future trends of automated timber feeding, providing a comprehensive guide to revolutionizing your steel coil stacking operations. Let's explore how this automation can elevate your efficiency and safety standards.

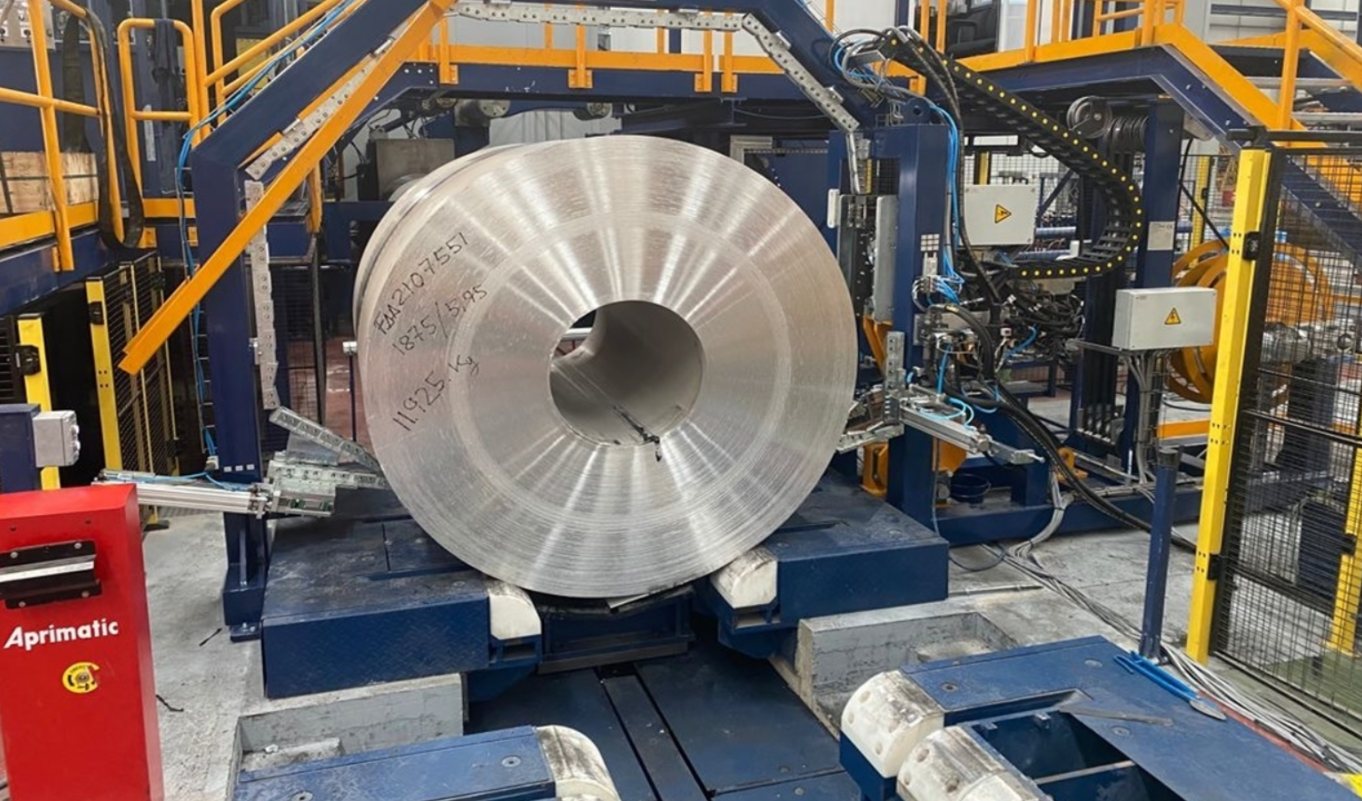

Streamlining Steel Coil Stacking with Automated Timber Feeding

Manually inserting timber dunnage between steel coils is a major bottleneck in modern packing lines, characterized by intensive labor, inconsistency, and significant safety hazards. What if this critical step could be fully automated, ensuring a continuous, efficient, and safer workflow? This section explores the transformative benefits of adopting automated timber feeding systems.

Automated timber feeding systems revolutionize steel coil stacking by precisely placing timber layers, ensuring optimal separation, stability, and protection during packaging and transit. These systems drastically reduce manual intervention, leading to significant increases in packing speed and throughput. Key benefits include enhanced efficiency, improved worker safety and ergonomics by eliminating heavy lifting, consistent placement quality reducing product damage and material waste, and seamless integration into existing automated coil packing lines.

Diving Deeper: Quantifying the Advantages of Automation

Automating the timber feeding process in coil stacking operations offers a multitude of quantifiable advantages that extend far beyond simple speed increases. Understanding these benefits is crucial for steel service centers aiming to modernize and optimize their logistics.

Enhanced Efficiency and Throughput

The most immediate impact of implementing automatic timber feeding is a dramatic improvement in operational efficiency and overall throughput. Manual timber placement is inherently slow, variable depending on operator skill and fatigue, and often requires multiple personnel. Automated systems operate at a consistent, pre-programmed speed, significantly reducing cycle times per coil stack.

Consider the contrast between manual and automated approaches:

Feature	Manual Timber Feeding	Automatic Timber Feeding	Impact
Speed	Slow, variable, operator-dependent	Fast, consistent, machine-paced	Drastically reduced cycle times, increased line throughput.
Labor Requirement	Multiple operators needed	Minimal supervision (often 1 op)	Significant reduction in labor costs, reallocation of workforce.
Consistency	Prone to errors, uneven placement	Precise, uniform placement	Improved stack stability, reduced risk of coil damage during transit.
Error Rate	Higher due to human factors	Minimal, system precision driven	Fewer rejected loads, improved customer satisfaction.
Throughput	Lower	Significantly Higher	Ability to handle increased volume, meet tighter deadlines.
Safety	Higher risk of injury	Lower risk, safer operation	Reduced workplace accidents, lower compensation costs, improved morale.
Material Usage	Potential for over/under usage	Optimized based on settings	Reduced timber waste, lower material costs.

As the table clearly illustrates, automation provides substantial gains across critical operational metrics. Faster, more consistent timber feeding directly translates to higher coil packing line throughput. This allows businesses not only to meet increasing customer demands but also to improve delivery times and potentially reduce inventory holding periods. The elimination of a major bottleneck ensures the entire packing line can operate closer to its maximum potential capacity.

Improved Safety and Ergonomics

The manual handling of timber dunnage, particularly the heavy beams used for large steel coils, poses significant ergonomic risks. Workers repeatedly lifting, positioning, and adjusting timbers are susceptible to musculoskeletal injuries, including back strains, shoulder injuries, and muscle fatigue. Dropped timbers or unstable stacks during manual placement can also lead to acute injuries. Warehousing and logistics environments, especially in the metalworking industry, are known for physically demanding and potentially hazardous work, making ergonomic improvements crucial.

Automatic timber feeding systems effectively eliminate these manual handling risks. By automating the lifting, transport, and precise placement of timber, these systems drastically reduce the physical burden on workers. This shift minimizes repetitive motions, awkward postures, and heavy lifting associated with manual dunnage placement. The result is a significantly safer and more ergonomic work environment. This directly translates to fewer workplace injuries, reduced absenteeism, lower workers' compensation insurance costs, and improved employee morale. Furthermore, a safer environment often leads to greater focus and potentially higher quality work in other areas of the packing line that still require human oversight.

Consistent Quality and Reduced Material Waste

Inconsistency in manual timber placement is a major source of quality issues and potential product damage. Improperly spaced or misaligned timbers can create unstable coil stacks. This instability increases the risk of coils shifting, collapsing, or sustaining damage during subsequent handling, storage, and transportation. Such damage can lead to costly rejects, customer complaints, and reputational harm. Human error, fatigue, and variability between operators make consistent manual placement challenging.

Automated timber feeding systems deliver unparalleled precision and consistency. They place timbers according to pre-programmed patterns and specifications, ensuring uniform spacing and alignment every time. This leads to significantly more stable and secure coil stacks, minimizing the risk of damage during transit and storage. Consistent dunnage placement maintains the integrity of the steel coils, ensuring they arrive at the customer in optimal condition.

Beyond quality, automation also contributes to reduced material waste. Automated systems can be programmed for optimal timber usage based on coil dimensions and stacking requirements. They precisely place the necessary amount of timber, avoiding the common manual pitfalls of using too much dunnage ("over-packing" for safety margins) or inconsistent spacing that requires extra pieces. This optimized material usage reduces timber consumption and associated costs, contributing to both economic and environmental sustainability goals.

Integrating Timber Feeding Machines into Coil Packing Lines

Successfully automating timber placement requires more than just purchasing a machine; it demands thoughtful integration into the existing coil packing line. How can you ensure this critical component works seamlessly with upstream and downstream processes for a truly optimized workflow? This section focuses on the practicalities of integration.

Timber feeding machines are integrated as an upstream component in automatic coil packing lines, positioned before the main coil stacking station. They automatically select, arrange, and place timber dunnage onto pallets or coil separators. Crucially, their operation must be precisely synchronized with coil handling and stacking mechanisms, typically via PLCs and sensors, to ensure a continuous, efficient, and error-free automated workflow.

Achieving Seamless Integration: Key Considerations

Integrating a timber feeder stacking machine isn't a simple plug-and-play process. It requires careful planning and consideration of several technical and logistical factors to ensure it enhances, rather than hinders, the overall packing line efficiency. Success hinges on creating a harmonious and synchronized system.

Synchronization with Coil Handling Systems

This is arguably the most critical aspect of integration. The timber feeding machine must operate in perfect lockstep with the systems delivering coils to the stacking station. This involves precise timing: the machine needs to place the timber layer at the exact moment the stacking mechanism is ready for it, just before the next coil arrives.

• Control Systems: Programmable Logic Controllers (PLCs) are the brains behind this synchronization. They receive signals from sensors tracking coil movement and position, and send commands to both the coil handling equipment (conveyors, lifts, tilters) and the timber feeder.
• Sensors: Various sensors (photoelectric, proximity, laser) detect coil presence, position, and dimensions. This data feeds into the PLC, allowing it to trigger the timber feeding cycle accurately.
• Timing Parameters: The PLC program must incorporate precise timing parameters based on the line speed, coil travel time, and the timber feeder's cycle time. Any mismatch can lead to bottlenecks, misaligned stacks, or collisions. For example, if the timber feeder is too slow or its cycle starts too late, the arriving coil might have to wait, slowing down the entire line. Conversely, if it places timber too early, it might interfere with the previous coil being settled or the stacking mechanism.
• Communication Protocols: Robust communication protocols (like Ethernet/IP, Profinet) between the timber feeder's controller and the main packing line PLC are essential for reliable data exchange and coordinated control.

Achieving this level of synchronization requires close collaboration between the timber feeder supplier and the integrator managing the overall packing line automation.

Customization for Coil and Timber Dimensions

Steel coils and timber dunnage are not uniform. Coil processing lines handle products with varying diameters, widths, weights, and sometimes even eye orientations. Similarly, timber dunnage comes in different lengths, widths, and thicknesses depending on the load requirements and customer specifications.

A successful timber feeding system must be flexible and adaptable to handle this variability.

• Adjustable Mechanics: The machine's mechanical components, such as grippers, placement arms, and hopper guides, need to be adjustable or designed to accommodate the expected range of timber dimensions. This might involve quick-change tooling or automated adjustments.
• Sensor Capabilities: Sensors must accurately detect the dimensions of incoming coils (if variable within a run) to ensure the correct timber pattern and quantity are selected. Vision systems can sometimes be employed for more complex identification.
• Programmable Settings: The control system (PLC/HMI) must allow operators to easily select or input parameters for different coil sizes and timber specifications. This enables quick changeovers between different production runs without extensive mechanical reconfiguration. Pre-programmed recipes for common coil/timber combinations are highly beneficial.
• Handling Capacity: The system's robotic arms or manipulators must be rated for the weight and size variations of the timber pieces they need to handle.

Lack of versatility can severely limit the benefits of automation, restricting it to only certain product types or requiring significant downtime for changeovers. Therefore, specifying the full range of expected coil and timber variations during the procurement phase is crucial.

Robust Control Systems and User Interface

The control system orchestrates the entire automated timber feeding process, ensuring precision, reliability, and safety. Its robustness and usability are paramount for efficient operation.

• PLC Reliability: The core PLC must be industrially hardened, capable of reliable operation in potentially harsh warehouse or factory environments (dust, vibration, temperature fluctuations). Redundancy might be considered for critical applications.
• Human-Machine Interface (HMI): Modern systems utilize intuitive HMIs, often touchscreen panels. A well-designed HMI provides:
  • Easy Operation: Clear menus and graphical representations for starting/stopping the system, selecting recipes, and making minor adjustments.
  • Real-time Monitoring: Displays key operational data like cycle times, timber counts, system status, and sensor readings.
  • Diagnostics: Provides clear error messages and diagnostic tools to quickly identify and troubleshoot issues, minimizing downtime. Alarm logs help track recurring problems.
  • Parameter Adjustment: Allows authorized personnel (with password protection) to adjust settings like placement coordinates, timing delays, and sensor thresholds.
  • Integration Capabilities: The HMI should seamlessly integrate with higher-level plant management or SCADA systems for data collection and remote monitoring, aligning with Industry 4.0 principles.
• Safety Integration: The control system must integrate seamlessly with the overall packing line's safety system, including emergency stops, light curtains, and safety interlocks, ensuring immediate shutdown in hazardous situations.

A complex but difficult-to-operate control system can negate efficiency gains. Investing in a robust, well-supported, and user-friendly control system with a clear HMI is essential for maximizing the uptime and effectiveness of the automated timber feeder.

Technical Aspects of Automatic Timber Feeding Machines

While the concept of placing timber between coils seems straightforward, the machines performing this task automatically are sophisticated pieces of engineering. Understanding their technical underpinnings reveals how they achieve speed, precision, and reliability. Let's delve into the specifications and components that define these automated systems.

Automatic timber feeding machines employ a coordinated interplay of mechanical, pneumatic, and electrical systems. Key technical aspects defining their performance include the timber feeding speed (timbers/minute), compatibility with various timber and coil dimensions, power supply requirements, and sophisticated control systems integrating sensors and PLCs. These specifications dictate the machine's throughput capacity, adaptability to different products, and seamless integration potential within the larger coil packing line.

Technical Deep Dive: Specifications and Components

To truly appreciate the engineering behind automated timber feeding, we need to examine the specific performance metrics and the core components that enable their function. This technical dissection clarifies how these machines contribute significantly to modern coil packing efficiency.

Key Specifications and Performance Metrics

Selecting the right automatic timber feeding machine requires careful consideration of its technical specifications against the demands of the specific coil packing line. These metrics define the machine's capabilities and limitations.

Specification	Typical Range / Example Value	Importance & Considerations
Timber Feeder Speed	10 - 120 timbers/minute	Directly impacts the overall packing line cycle time and throughput. Must match or exceed the coil processing rate.
Timber Dimensions (LWH)	Up to 1200mm x 40mm x 40mm (Example)	Defines the range of timber sizes the machine can reliably handle. Critical for compatibility with dunnage requirements.
Max Coil Size (WHL)	Up to 1200mm x 1200mm x 500mm (Example - FHOPEPACK)	Determines the upper limit of coil dimensions the system can accommodate for proper timber placement.
Min Coil Size (WHL)	Down to 600mm x 600mm x 60mm (Example - FHOPEPACK)	Determines the lower limit of coil dimensions the system can handle.
Packaging Speed	15 - 30 coils/hour (Example - FHOPEPACK)	Reflects the integrated system's overall output, influenced by both coil handling and timber feeding speeds.
Power Supply	380V, 50Hz, Three Phase (Common)	Specifies the required electrical input. Must match plant utilities. Voltage/frequency may vary by region.
Control System	PLC Controlled with HMI Touch Screen	Essential for automation, synchronization, diagnostics, and ease of operation. (See Integration section).
Machine Weight	~5000 - 14000 Kg (Examples from sources)	Significant weight requires adequate foundation planning and impacts installation logistics.
Machine Dimensions(LWH)	~14000mm x 3000mm x 4500mm (Example - FHOPEPACK)	Determines the physical footprint required within the packing line layout.

Note: Specific values (e.g., FHOPEPACK examples) are illustrative and actual machine specifications vary widely based on manufacturer and model.

Matching these specifications precisely to the operational requirements – including current and anticipated future needs regarding coil/timber sizes and line speed – is paramount. Over-specifying can lead to unnecessary cost, while under-specifying results in a system that cannot meet production demands or handle the required product range. Compatibility with existing line control architecture and physical space constraints are also vital considerations during selection.

Core Components and Functionality

An automatic timber feeding machine is a synergistic system where several key components work together to achieve automated dunnage placement. Understanding these components clarifies the machine's operation:

1. Timber Hopper and Feeding Mechanism:

   • Function: This is the storage area for the bulk timber supply. It's designed to hold a significant quantity of timbers (e.g., a full bundle or shift's worth) to minimize reloading frequency.
   • Mechanism: Sophisticated mechanisms, often involving conveyors, agitators, or vibration systems, ensure timbers are consistently oriented and fed one by one (or in pre-set groups) into the picking area. Critical features prevent jamming and ensure a steady supply to the next stage. Sensors monitor timber levels in the hopper, signaling operators when reloading is needed.

2. Timber Picking and Arrangement System:

   • Function: This component selects individual timbers (or groups) from the feeder mechanism and arranges them into the specific pattern required for the coil layer.
   • Mechanism: This is often the most complex part, frequently utilizing:
     • Robotic Arms: Multi-axis industrial robots equipped with specialized grippers offer high flexibility, speed, and precision. They can pick timbers and place them in complex patterns.
     • Pneumatic Grippers/Manipulators: Simpler systems might use pneumatic actuators with custom grippers to pick and transfer timbers. These can be very fast for specific, repetitive tasks.
     • Vacuum Systems: Sometimes used, especially for lighter or smoother timber types.
   • Pattern Formation: Timbers are typically arranged on an intermediate table or directly onto the placement mechanism according to the programmed stacking pattern (e.g., parallel, perpendicular, specific spacing).

3. Placement Mechanism:

   • Function: Once the timbers are arranged in the correct pattern, this mechanism accurately transfers and places the entire timber layer onto the designated location – typically a pallet positioned beneath the coil stack or directly onto a separator sheet on the previous coil layer.
   • Mechanism: This can involve pusher arms, conveyors, robotic arms, or lowering/lifting platforms that gently deposit the timber layer precisely where needed, ensuring correct spacing and alignment relative to the coil being stacked. Synchronization with the coil stacking station is critical here.

4. Control System and Sensors:

   • Function: The central nervous system coordinating all machine actions. (As detailed in the Integration section).
   • Components: PLCs execute the programmed logic, HMIs provide operator interface and monitoring, and a network of sensors (photoelectric, proximity, vision systems) provide real-time feedback on timber presence, position, alignment, coil parameters, and potential faults. Safety sensors (light curtains, emergency stops) are integrated for personnel protection.

These core components, working in precise harmony under PLC control, automate the entire timber feeding sequence – from bulk storage intake to accurate placement on the coil stack – forming a crucial element of efficient and reliable automated coil packing lines.

Beyond Automation: The Future of Timber Feeding in Coil Packing

Automating timber feeding is a significant step, but it's not the end of the journey for optimizing coil packing lines. As technology evolves, what further advancements and innovations can we anticipate in how timber dunnage is handled and utilized in the steel industry? The future points towards smarter, more integrated, and sustainable solutions.

The future trajectory of timber feeding in coil packing involves deeper integration with smart factory ecosystems, enhanced robotic capabilities, AI-driven optimization for material savings, and a growing emphasis on sustainable practices, including the exploration of alternative dunnage materials. These trends promise further gains in efficiency, waste reduction, and overall operational intelligence, solidifying automated dunnage placement as an essential technology for modern steel processing.

Emerging Trends and Innovations

The technology landscape for material handling and packaging is constantly evolving. Several key trends are poised to further enhance automated timber feeding systems in coil packing lines:

1. AI-Powered Timber Optimization:

   • Concept: Leveraging Artificial Intelligence (AI) and machine learning algorithms to dynamically optimize timber usage in real-time.
   • Application: Instead of fixed patterns, AI could analyze incoming coil dimensions (from sensors or upstream data), weight, and potentially even destination requirements (e.g., specific customer dunnage preferences) to calculate the most efficient timber placement pattern. This could involve minimizing the number of timbers used while maintaining structural integrity, selecting optimal timber lengths from variable stock, or adjusting placement for non-standard coil shapes.
   • Benefit: Significant potential for reducing timber consumption, cutting material costs, minimizing waste, and adapting automatically to variations without reprogramming.

2. Robotic Precision and Dexterity:

   • Concept: Continued advancements in industrial robotics, particularly in gripper technology, sensor fusion (vision, force sensing), and collaborative robot capabilities.
   • Application: Robots with enhanced dexterity could handle timbers more gently, place them with even greater accuracy, and potentially adapt to slight imperfections in timber quality (e.g., slight warpage). Force sensors could ensure proper seating without damaging coils. Collaborative robots might allow for safer human interaction for tasks like hopper refilling or quality checks without full line stops. Advanced vision systems could identify timber defects before placement.
   • Benefit: Higher placement accuracy, reduced potential for coil damage, increased flexibility in handling different timber types, and potentially safer human-robot collaboration zones.

3. Sustainable Timber Alternatives and Circularity:

   • Concept: Growing environmental pressure and resource scarcity are driving exploration into alternatives to traditional wood dunnage.
   • Application: Development and adoption of dunnage made from engineered wood products, composite materials (e.g., recycled plastic blends), or even durable, reusable plastic or metal dunnage systems. This ties into circular economy principles where dunnage might be returned, refurbished, and reused multiple times. Automated systems would need to be adaptable to handle these different materials, which may have varying weights, textures, and handling characteristics.
   • Benefit: Reduced reliance on virgin timber, lower environmental footprint, potentially longer lifespan for dunnage materials, and alignment with corporate sustainability goals.

4. Integration with Smart Factories (Industry 4.0):

   • Concept: Seamlessly connecting automated timber feeding systems into the broader digital ecosystem of the smart factory.
   • Application: Timber feeders become IIoT (Industrial Internet of Things) devices, streaming operational data (cycle times, timber usage, error codes, sensor readings) to centralized plant management systems (MES, ERP, SCADA). This data can be analyzed for performance monitoring, identifying bottlenecks, predicting maintenance needs (e.g., based on motor current or cycle counts), and optimizing overall production scheduling. Remote diagnostics and troubleshooting become possible.
   • Benefit: Enhanced visibility into packing line performance, data-driven decision-making, proactive maintenance reducing downtime, improved overall equipment effectiveness (OEE), and better integration with supply chain logistics.

These emerging trends indicate that automated timber feeding is not a static technology but one that will continue to evolve, becoming smarter, more adaptable, sustainable, and deeply integrated into the digital fabric of modern manufacturing and logistics operations.

Conclusion

Automating timber placement between steel coils represents a pivotal advancement for the steel handling and packaging industry. Transitioning from manual methods to integrated Automatic timber feeding systems yields substantial improvements in efficiency, dramatically boosting throughput and reducing packing cycle times. Equally important are the gains in workplace safety, mitigating ergonomic risks associated with heavy lifting and repetitive motions. Furthermore, the precision of automated systems ensures consistent dunnage placement, leading to enhanced stack stability, reduced product damage, optimized material usage, and ultimately, higher quality assurance for stacked steel coils during storage and transport. As technology progresses with AI, advanced robotics, and smart factory integration, the future promises even more intelligent and sustainable solutions for this critical process.
