Integrated Systems: Software and Network for Slitting and Packing Line Connection

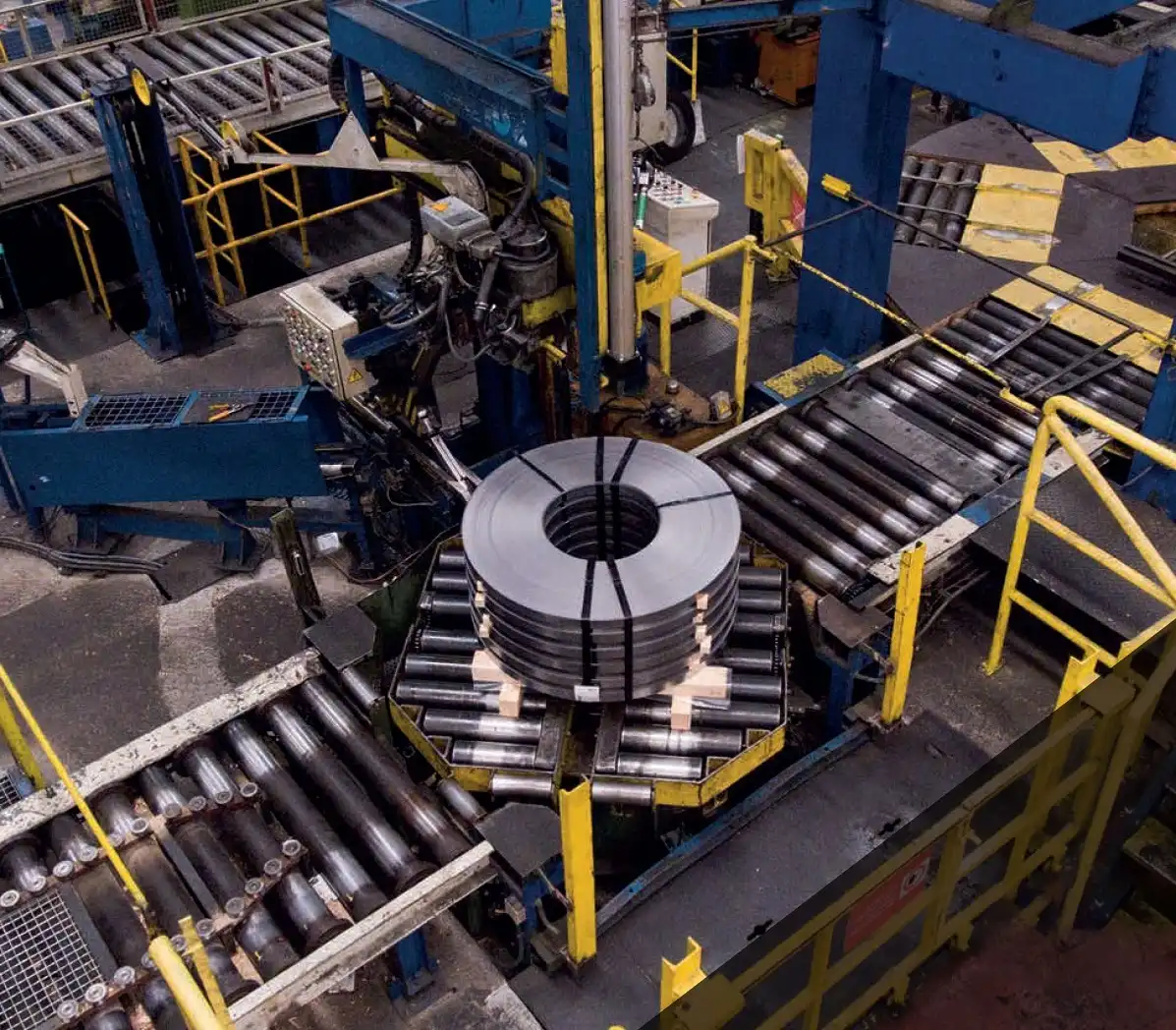

Facing fragmented operations between your slitting and packing lines? Disconnected systems often lead to manual data entry, communication delays, and costly inefficiencies, hindering overall productivity. Imagine a seamless flow where software intelligence and robust network infrastructure unite these critical processes, unlocking real-time visibility, optimized control, and significant performance gains.

Integrated systems for slitting and packing lines involve the strategic connection of software applications (like PLCs, SCADA, MES) and network infrastructure (using Industrial Ethernet, switches, routers) to enable seamless, real-time data exchange and control coordination between the two processes. This integration facilitates automated workflows, enhances operational visibility, improves quality control, and optimizes material flow from slitting through final packaging, ultimately boosting efficiency and reducing errors.

Achieving this level of integration requires a deep dive into the essential components: the network that forms the communication backbone, the software that provides control and intelligence, and the data exchange mechanisms that ensure timely and reliable information flow. Understanding how these elements interact is paramount for designing and implementing a successful, high-performance integrated system that transforms your slitting and packing operations from isolated steps into a unified, efficient production stream.

The Network Backbone: Infrastructure for Seamless Integration

Are disparate communication protocols and unreliable network connections crippling the coordination between your slitting and packing lines? This lack of a unified backbone leads to data silos, delayed responses, and potential production halts. A robust, well-designed network infrastructure, built on industrial standards like EtherNet/IP, provides the reliable, high-speed communication essential for true integration.

A robust network infrastructure is fundamental for connecting slitting and packing lines. It typically involves Industrial Ethernet (like EtherNet/IP) using components such as managed switches, routers, and appropriate cabling (copper/fiber tailored for industrial environments). Key considerations include selecting the right topology (star, ring, or hybrid) for flexibility and redundancy, implementing segmentation using Virtual LANs (VLANs) to manage traffic and enhance security, and incorporating redundancy protocols (like STP/RSTP or MRP for ring topologies) to ensure high availability. Security measures, including firewalls and Access Control Lists (ACLs), are vital to protect the control network. Proper network planning ensures reliable, real-time data transfer, minimizing latency and jitter, which is critical for synchronized operations between the slitting and packing stages. This infrastructure supports both time-sensitive control signals (implicit messaging) and less time-critical information exchange (explicit messaging, diagnostics, enterprise data).

Key Network Components and Protocols: Building a Resilient System

Designing the network infrastructure for integrating slitting and packing lines requires careful selection of components and adherence to best practices to ensure reliability, performance, and security demanded by industrial environments.

Ethernet Switches: The Traffic Directors

Switches are fundamental building blocks, connecting end devices (PLCs, HMIs, sensors, drives) and other network components. In industrial settings, the choice between unmanaged and managed switches is critical.

• Unmanaged Switches: Simple, plug-and-play devices suitable for small, isolated network segments with low device counts and non-critical traffic. They lack configuration options, VLAN support, traffic prioritization (QoS), and advanced diagnostics. Their primary drawback in integrated systems is their handling of multicast traffic (common in EtherNet/IP's producer-consumer model for I/O), which they typically flood to all ports. This can quickly overload end devices not intended as recipients, leading to performance degradation or communication failures.

• Managed Switches: Offer advanced features essential for robust integrated systems.

  • VLANs (Virtual LANs): Allow logical segmentation of the network, irrespective of physical connections. This isolates broadcast and multicast traffic, improves security by restricting communication between different functional groups (e.g., separating control traffic from HMI traffic or enterprise access), and enhances performance by reducing unnecessary traffic on each segment.
  • IGMP Snooping: Crucial for managing EtherNet/IP multicast traffic. IGMP (Internet Group Management Protocol) snooping allows the switch to "listen" to multicast group membership messages and forward multicast traffic only to ports connected to devices that have explicitly joined that group, drastically reducing unnecessary traffic load on other devices. For EtherNet/IP systems relying heavily on implicit (I/O) messaging, this feature is often mandatory for stable operation, especially with numerous devices or fast update rates (low RPI).
  • QoS (Quality of Service): Enables prioritization of network traffic. Time-critical control data (e.g., implicit I/O messages using EtherNet/IP's CIP protocol, often tagged with high 802.1p priority) can be given precedence over less critical traffic (e.g., HMI updates, file transfers, SNMP diagnostics). This ensures deterministic behavior for control loops, even under varying network load.
  • Redundancy Protocols: Managed switches support protocols like Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Media Redundancy Protocol (MRP) for ring topologies. These protocols provide alternative communication paths if a link or switch fails, significantly enhancing network availability. MRPD (Media Redundancy for Planned Duplication) is specifically designed for PROFINET IRT environments requiring bumpless switchover.
  • Diagnostics & Management: Offer SNMP support for integration into Network Management Systems (NMS), web interfaces for easy configuration and status monitoring, port mirroring for troubleshooting, and detailed port statistics (errors, utilization).

• Layer 2 vs. Layer 3 Switches: Layer 2 switches operate based on MAC addresses and are used for segmentation within a single network (subnet). Layer 3 switches incorporate routing functionality based on IP addresses, allowing them to connect different subnets or VLANs and enforce more sophisticated access control policies (ACLs). Layer 3 switches are often used at the boundary between the control network and the enterprise network.

Routers and Firewalls: Gatekeepers of Connectivity

While Layer 3 switches handle routing within the plant floor, dedicated routers and firewalls play a crucial role, particularly when connecting the control network to the broader enterprise network or the internet.

• Routers: Primarily function to connect different IP networks (subnets). They prevent broadcast storms from propagating between networks and use routing tables to determine the optimal path for traffic. They are essential for enabling communication between VLANs configured on switches. Routers can implement Access Control Lists (ACLs) to filter traffic based on IP addresses, ports, and protocols, providing a layer of security.
• Firewalls: Provide more advanced security features, inspecting traffic statefully and applying security policies to block unauthorized access and malicious traffic between the control network (OT) and enterprise network (IT). They are critical for protecting sensitive control systems from external threats.

Cabling and Topology: The Physical Foundation

The physical layout and media choice impact performance and reliability.

• Topology:
  • Star: Devices connect to a central switch. Easy to manage and troubleshoot, failure of one cable affects only one device. Common within control panels or machine segments.
  • Line/Daisy-Chain: Devices with integrated 2-port switches connect sequentially. Reduces cabling but a single break can isolate downstream devices unless part of a ring.
  • Ring: A line topology closed into a loop. Requires redundancy protocols (MRP) to prevent broadcast storms but offers high availability by providing two communication paths.
  • Tree/Hybrid: Combinations of the above, common in larger systems.
• Cabling:
  • Twisted-Pair Copper (e.g., Cat 5e, Cat 6/6A): Standard for connections up to 100 meters. Shielded Twisted Pair (STP) is recommended in high-noise industrial environments over Unshielded Twisted Pair (UTP). Proper grounding is crucial for shielded cables to be effective and avoid ground loops. Industrial-grade cables offer resistance to oil, chemicals, abrasion, and flexing. Connectors like industrial RJ45 (IP67) and M12 (D-coded for 100Mbps, X-coded for Gigabit) provide robust, sealed connections.
  • Fiber Optic: Offers immunity to electromagnetic interference (EMI), suitable for long distances (kilometers possible with single-mode fiber), and provides electrical isolation. Ideal for connections between buildings, near high-power equipment (VFDs, welders), or in hazardous areas. Requires careful handling regarding bend radius. Common connectors include LC and SC.

Feature	Unmanaged Switch	Managed Switch (L2)	Managed Switch (L3) / Router	Firewall
Primary Use	Small, simple, isolated segments	Connect end devices, segment network	Connect subnets/VLANs, basic security	Secure network perimeter
Key Feature	Basic connectivity	VLANs, QoS, IGMP Snooping, Redundancy	IP Routing, ACLs	Stateful inspection, threat prot.
Complexity	Low	Medium	High	High
Cost	Low	Medium	High	High
Traffic Mgmt	None	Prioritization, Multicast Control	Routing decisions, Basic Filtering	Advanced Filtering & Policy Enf.
Security	None	Port Security, VLAN isolation	ACLs, Inter-VLAN routing control	Deep Packet Inspection, VPN
Diagnostics	Basic LEDs	SNMP, Web UI, Port Mirroring, Statistics	SNMP, Web UI, Routing Tables, Stats	Logs, Threat Analysis

Industrial Protocols: The Language of Control

While the infrastructure uses standard Ethernet (IEEE 802.3), the data flowing over it uses specific industrial protocols. EtherNet/IP is predominant in many industries.

• EtherNet/IP: Based on the Common Industrial Protocol (CIP) layered over standard TCP/IP and UDP/IP.
  • TCP/IP: Used for connection-oriented, reliable communication, typically for configuration (explicit messaging), diagnostics, and connections to HMI/SCADA or enterprise systems.
  • UDP/IP: Used for connectionless, efficient communication, primarily for real-time I/O data (implicit messaging). UDP's lower overhead is advantageous for speed, but reliability relies on the application layer (CIP) or network design.
  • Producer-Consumer Model: EtherNet/IP's implicit messaging often uses IP multicast. A device (producer) sends data onto the network, and multiple devices (consumers) can receive the same packet simultaneously. This is highly efficient compared to sending individual unicast packets to each consumer. Managed switches with IGMP snooping are essential to prevent this multicast traffic from flooding the network unnecessarily.

Building a resilient network backbone requires choosing the right mix of these components and protocols, configured according to best practices for industrial environments, focusing on reliability, real-time performance, security, and scalability.

Software Synergy: Bridging Control and Information

Is your slitting line unaware of downstream packing capacity, or your ERP system blind to real-time production status? Isolated software creates information gaps, hindering efficiency and decision-making. True integration requires software systems that communicate seamlessly, bridging the gap between machine control (OT) and enterprise planning (IT) systems.

Integrated software connects the operational technology (OT) on the slitting and packing lines with information technology (IT) systems. This typically involves PLC programming for machine control, SCADA/HMI for visualization and operator interaction, and MES/ERP integration for production scheduling, tracking, quality management, and inventory control. Defining clear software requirements and interfaces using standards like OPC UA is crucial for seamless data flow and operational efficiency between disparate systems.

Defining Software Requirements and Integration Points

Successfully integrating the software landscape for slitting and packing lines demands a clear understanding of each layer's role and how they must interact. This involves moving beyond isolated functions towards a cohesive system where data flows meaningfully between control, supervision, execution, and planning levels.

Programmable Logic Controllers (PLCs): At the heart of machine control, PLCs execute the real-time logic for both the slitting and packing operations. Software requirements here include:

• Control Logic: Precise sequencing, motion control (for slitters, winders, conveyors, strapping/wrapping machines), interlocking between machines (e.g., preventing packing if slitter faults), and handling of sensor inputs and actuator outputs. IEC 61131-3 programming languages (Ladder Logic, Structured Text, Function Block Diagram) are standard.
• Data Handling: Ability to read parameters (e.g., slit width, packing recipe), process real-time I/O data, calculate process variables, and buffer critical data.
• Communication: Robust implementation of the chosen industrial network protocol (e.g., EtherNet/IP objects and services) for data exchange with other PLCs, HMIs, and higher-level systems. Needs to support both cyclic (I/O) and acyclic (parameter/diagnostic) communication.

Human-Machine Interface (HMI) / Supervisory Control and Data Acquisition (SCADA): These systems provide visualization and operator interaction. Requirements include:

• Visualization: Clear graphical representation of both slitting and packing processes, status indication (running, stopped, fault), key performance indicators (KPIs), and alarm displays.
• Operator Control: Interfaces for starting/stopping lines, selecting recipes/orders, acknowledging alarms, manual overrides (with appropriate security).
• Data Logging & Trending: Recording of critical process variables, alarms, and events for troubleshooting and analysis.
• Connectivity: Ability to communicate reliably with PLCs (often via OPC UA or native drivers) and potentially interface with MES databases.

Manufacturing Execution System (MES): The MES bridges the gap between shop floor control and enterprise planning. Integration is key for contextualizing operational data. Requirements involve:

• Order Management & Scheduling: Receiving production orders from ERP, managing detailed production schedules for both slitting and packing, and dispatching tasks to the lines.
• Recipe & Parameter Management: Storing and downloading recipes/parameters (slit patterns, packaging configurations, material types) to PLCs/HMIs based on the scheduled order.
• Material Tracking & Genealogy: Tracking coils/rolls from slitting through packing, associating quality data, and maintaining a product history for traceability. Requires communication with PLCs/SCADA for real-time material consumption and production counts.
• Performance Monitoring (OEE): Collecting data (counts, downtime events, speed) from PLCs/SCADA to calculate Overall Equipment Effectiveness and other KPIs.
• Quality Management: Receiving quality check data (manual entry or from automated inspection systems), managing non-conformances, and linking quality results to specific coils/rolls.
• ERP Integration: Two-way communication with ERP for order download, material consumption reporting, production confirmation, and inventory updates.

Enterprise Resource Planning (ERP): The top-level planning system. Integration points typically include:

• Order Data: Sending planned orders, Bill of Materials (BOMs), and routing information to MES.
• Inventory Management: Receiving real-time inventory updates (raw materials consumed, finished goods produced) from MES.
• Production Confirmation: Receiving confirmation of completed production quantities from MES.
• Financials & Costing: Using production data from MES for accurate cost accounting.

Integration Technologies & Standards: Seamless data flow relies on common languages and protocols.

• OPC UA (Open Platform Communications Unified Architecture): A platform-independent standard for secure and reliable data exchange between industrial devices and software applications. Increasingly used for vertical integration (PLC/SCADA to MES/ERP).
• Databases: MES and sometimes SCADA systems rely on databases (e.g., SQL Server, Oracle) for storing transactional data, recipes, and history. Integration often involves direct database queries or stored procedures.
• APIs & Web Services: Modern systems often use Application Programming Interfaces (APIs), frequently based on REST or SOAP, for exchanging data between MES, ERP, and other enterprise applications.
• File Exchange: Simple, often batch-oriented integration using shared network folders and standard file formats (CSV, XML). Less suitable for real-time needs.

Defining these requirements and the specific data points to be exchanged at each interface before implementation is critical. This ensures all systems speak the same language and that data flows logically to support end-to-end process optimization. Modularity in software design is also crucial, allowing for easier upgrades and integration of new functionalities later.

Data Exchange Dynamics: Ensuring Real-Time Communication

Are communication lags between your slitter and packer causing synchronization errors or material waste? Inefficient data exchange can undermine the entire integration effort, leading to poor control and missed optimization opportunities. Optimizing data exchange requires understanding the protocols, performance needs, and security implications.

Effective data exchange between slitting and packing lines relies on efficient protocols and network configuration. EtherNet/IP utilizes CIP over TCP/IP and UDP/IP. Implicit messaging (I/O data) often uses UDP multicast (Producer-Consumer model) for efficiency, requiring network features like IGMP snooping. Explicit messaging (configuration, diagnostics) uses TCP unicast. Ensuring sufficient bandwidth, low latency, and minimal jitter through QoS and proper network design is critical for real-time control.

Protocols, Performance, and Security: The Pillars of Data Exchange

Ensuring that the right data gets to the right place at the right time, reliably and securely, is the core challenge of integrating slitting and packing lines. This requires a careful balance of communication models, performance tuning, and security measures.

Communication Models in EtherNet/IP

EtherNet/IP, built on the Common Industrial Protocol (CIP), primarily uses two models for data exchange, leveraging standard TCP/IP and UDP/IP transports:

• Producer-Consumer (Implicit Messaging / I/O Data): This model is highly efficient for real-time control data that needs to be shared cyclically or on change-of-state.
  • Mechanism: One device (the producer, e.g., a sensor block on the slitter reporting status) sends out a single data packet onto the network. This packet is typically sent using UDP/IP multicast. Multiple devices (consumers, e.g., the slitter PLC, the packing PLC, an HMI) can simultaneously receive and use this single packet.
  • Addressing: Data isn't addressed to a specific destination IP but identified by a Connection ID (CID). Consumers subscribe to specific CIDs.
  • Benefits: Extremely efficient use of bandwidth, especially when data needs to go to multiple destinations. Reduces latency as data arrives at all consumers simultaneously.
  • Requirements: Relies heavily on managed switches with IGMP Snooping enabled to prevent multicast flooding. Without it, every device receives every multicast packet, potentially overwhelming devices not interested in the data.
  • Transport: Primarily uses UDP/IP for speed and low overhead. CIP provides mechanisms for detecting missing packets or timeouts.
• Client-Server (Explicit Messaging / Configuration & Diagnostics): This model is used for on-demand, point-to-point communication, typically for non-real-time tasks.
  • Mechanism: A client (e.g., an HMI or engineering workstation) sends a request to a specific server (e.g., a PLC or drive). The server processes the request and sends a response back to the client.
  • Addressing: Uses standard source and destination IP addresses (unicast).
  • Benefits: Reliable, acknowledged communication suitable for critical configuration changes or retrieving detailed diagnostic information.
  • Requirements: Standard TCP/IP networking capabilities.
  • Transport: Primarily uses TCP/IP to ensure reliable, acknowledged delivery of requests and responses.

Understanding which model is used for different data types is crucial for network design and troubleshooting. Mismanagement of the high volume of multicast traffic from the producer-consumer model is a common cause of performance issues.

Performance Metrics and Optimization

Achieving seamless integration, particularly for control functions requiring synchronization between slitting and packing, demands attention to network performance:

• Latency: The time delay for a packet to travel from source to destination. High latency can cause delays in control responses. Minimized by using high-speed links (100Mbps or 1Gbps), efficient switches (low internal delay), and optimized routing.
• Jitter: The variation in latency. High jitter makes deterministic control difficult, as response times become unpredictable. QoS mechanisms in managed switches help minimize jitter for high-priority traffic by ensuring consistent handling.
• Bandwidth: The data carrying capacity of the network. While control data packets are often small, the aggregate volume from many devices at fast update rates (low RPIs) can consume significant bandwidth. Network links, especially uplinks between switches, need sufficient capacity. 1 Gbps or even 10 Gbps backbones may be necessary in large systems.
• Packet Loss: Lost packets can cause control failures or require retransmissions (in TCP), increasing latency. Caused by network congestion, faulty hardware, or high EMI. Proper network design (adequate bandwidth, QoS, segmentation) and robust cabling minimize loss.

Optimization Techniques:

• Use Managed Switches: Essential for IGMP snooping and QoS.
• Implement QoS: Prioritize CIP implicit I/O traffic (often tagged with high 802.1p values) over less critical data.
• Use VLANs: Segment traffic to reduce broadcast domains and unnecessary traffic load on devices and links.
• Ensure Adequate Bandwidth: Size links appropriately, especially switch uplinks and backbone connections. Consider link aggregation (LAG) for high-traffic paths.
• Optimize RPIs: Configure Requested Packet Intervals (RPIs) based on actual control needs, avoiding unnecessarily fast rates that generate excessive traffic.

Data Security Considerations

As control networks become integrated with enterprise systems, security becomes paramount:

• Network Segmentation: Using VLANs and routers/firewalls to create distinct security zones (e.g., control zone, DMZ, enterprise zone) is fundamental. This limits the potential impact of a security breach in one zone on others.
• Firewalls: Implement industrial firewalls at the boundary between the OT (control) network and IT (enterprise) network. Configure rules to allow only necessary and authorized traffic.
• Access Control: Use ACLs on routers and Layer 3 switches to restrict traffic based on source/destination IP and ports. Implement port security on switches to limit device connections to specific MAC addresses or disable unused ports.
• Device Hardening: Change default passwords, disable unused services, and keep firmware updated on network devices and controllers.
• Authentication & Encryption: For remote access or sensitive data transfer to enterprise systems, use secure methods like VPNs (Virtual Private Networks) with strong authentication. Consider protocols like OPC UA which have built-in security features. While encryption adds overhead, it may be necessary for certain data flows.
• Monitoring & Auditing: Implement network monitoring tools to detect suspicious activity and maintain logs for security audits.
• Collaboration: Close collaboration between OT and IT security teams is essential to develop and maintain effective security policies that address the unique needs of the industrial environment (balancing security with uptime requirements).

Data Type	Typical Model	Transport	Key Network Need	Security Consideration
Real-time I/O Status	Producer-Consumer	UDP/IP	IGMP Snooping, Low Jitter	Segmentation (VLANs)
Control Setpoints	Producer-Consumer	UDP/IP	Low Latency, QoS	Segmentation (VLANs)
Configuration Data	Client-Server	TCP/IP	Reliability	Access Control, Authentication
Diagnostics/Alarms	Client-Server	TCP/IP	Reliability	Access Control, Logging
MES/ERP Data	Client-Server	TCP/IP	Bandwidth, Reliability	Firewall Rules, Encryption (VPN)
HMI/SCADA Updates	Varies (often C/S)	TCP/IP	Bandwidth	Authentication, Access Control

Successfully managing data exchange involves choosing the right communication models, optimizing network performance through careful design and configuration (especially using managed switches), and implementing robust security measures appropriate for an integrated industrial environment.

Achieving Seamless System Connectivity: Challenges and Best Practices

The ultimate goal is a fully integrated system where data and control flow effortlessly between the slitting and packing operations, and potentially upwards into enterprise systems. However, achieving this seamless system connectivity presents both technical and organizational challenges that require careful planning and execution.

Bridging the traditional gap between Operational Technology (OT) – the hardware and software controlling the physical processes – and Information Technology (IT) – the systems managing enterprise data – is often the most significant hurdle. These domains historically operate with different priorities, protocols, and skillsets. OT prioritizes uptime, real-time performance, and physical safety, often using specialized industrial protocols and hardware designed for harsh environments. IT focuses on data integrity, security, scalability, and standardization, typically using standard Ethernet, TCP/IP, and enterprise software. Integrating these requires mutual understanding and collaboration. Legacy equipment on either the slitting or packing line might lack modern networking capabilities, necessitating protocol gateways, hardware upgrades, or complex software interfaces. Ensuring different vendor systems can communicate effectively requires adherence to standards like OPC UA or careful custom integration. Furthermore, designing, implementing, and maintaining these integrated systems requires personnel with cross-disciplinary skills in control engineering, networking, and software development, which can be challenging to find or develop internally.

Best practices for achieving robust system connectivity involve meticulous planning, starting with defining clear requirements for data flow, control logic, and performance metrics like latency and throughput. Employing standardized hardware and software (e.g., EtherNet/IP for control, OPC UA for vertical integration), designing a scalable and resilient network architecture with appropriate segmentation (VLANs) and robust security (firewalls, ACLs), and ensuring thorough testing and validation during commissioning are crucial. Collaboration between OT and IT teams from the project's inception is essential for defining interfaces, security policies, and support responsibilities, ensuring a successful and sustainable integration.

A phased approach to implementation often yields the best results. Start by establishing reliable network connectivity and basic data exchange between the slitting and packing PLCs. Gradually add HMI/SCADA integration, followed by MES connectivity for order tracking and performance monitoring, and finally, link to ERP systems. This allows for incremental testing and reduces the risk associated with a large-scale, simultaneous rollout. Comprehensive documentation covering network topology, IP addressing schemes, VLAN configurations, firewall rules, software interfaces, and data mappings is vital for future troubleshooting, maintenance, and expansion. Training for both operators and maintenance personnel on the new integrated system is critical for adoption and effective use. Finally, implementing ongoing network and system monitoring tools helps proactively identify potential issues, track performance against baseline metrics, and plan for future capacity needs or technology upgrades. Effective change management processes are also necessary to handle software updates, hardware replacements, or configuration changes without disrupting operations. By addressing these challenges proactively and following these best practices, manufacturers can successfully achieve seamless system connectivity, unlocking the full potential of integrated slitting and packing operations.

Conclusion

Integrating software and network systems for slitting and packing lines transforms isolated processes into a cohesive, high-performance operation. By leveraging robust network infrastructure, synergistic software solutions, and optimized data exchange mechanisms, manufacturers can achieve significant improvements in efficiency, quality control, operational visibility, and overall agility. The foundation lies in careful planning, adherence to standards like EtherNet/IP and OPC UA, and the strategic deployment of managed network components. Addressing challenges like OT/IT convergence and legacy integration through collaborative planning and best practices ensures success. Ultimately, investing in well-designed [System connectivity]() is crucial for unlocking real-time control, data-driven decision-making, and a competitive edge in today's demanding manufacturing landscape.
