Struggling with the risky and sluggish movement of massive steel coils in your facility? Picture a world where these heavyweights glide seamlessly from process to process, boosting safety and output. This isn't a far-off dream; it's achievable with optimized coil car operations and adherence to clear guidelines.
Coil car operations involve using specialized industrial vehicles (Coil Cars) designed for the safe and efficient transport of heavy steel coils. Guidelines focus on selecting the right car type (like V-shape cradle or AGV), understanding technical specifications (capacity, power, safety features), proper loading/unloading procedures, secure coil restraint, seamless integration with production lines (rewinders, packing), and strict adherence to safety protocols to prevent accidents and material damage.
Implementing the right coil car system is more than just acquiring new equipment; it's about adopting a comprehensive strategy for material handling. This guide delves into the essential guidelines for safe and efficient coil car operations, exploring how these systems can revolutionize your steel coil handling processes, minimizing risks and maximizing productivity. Let's explore how to achieve operational excellence.
The V-Shape Cradle Coil Car: Versatility and Stability
Tired of unstable transport methods for varying coil sizes? The V-shape cradle coil car offers a robust, adaptable solution. Imagine a vehicle engineered to securely cradle coils of different dimensions, ensuring stability and preventing costly damage during movement within your facility. This is the advantage of the V-shape design.
V-shape cradle coil cars are industrial vehicles featuring a distinctive V-shaped structure specifically designed to securely hold and transport steel coils of diverse diameters. Built with robust steel frames and equipped with wheels for mobility, they often incorporate hydraulic systems for precise lifting and lowering. Critical safety mechanisms prevent coil shifting during transit. These cars are essential for integrating processes like coil rewinding with packing lines. Key operational guidelines involve selecting the appropriate type (Pit vs. Loading/Unloading) based on facility layout and automation needs, ensuring the V-cradle properly supports the coil without causing damage, operating within load capacity limits, utilizing safety locks, and performing regular maintenance on hydraulic and mechanical components. Their implementation significantly increases safety, reduces material damage, and enhances overall efficiency in steel service centers.
Dive Deeper: Pit Type vs. Loading/Unloading Car - Choosing the Right V-Shape Cradle
V-shape cradle coil cars aren't a universal solution; selecting the correct type is crucial for optimizing your workflow. Two primary designs cater to distinct operational needs: the Pit Type Coil Car and the Loading/Unloading Car. Understanding their fundamental differences, advantages, and limitations is key to making an informed investment that aligns with your facility's specific requirements.
Pit Type Coil Car: The Efficiency Enhancer
Pit Type Coil Cars are champions of space optimization and often integrate seamlessly into automated production lines. As the name suggests, these units operate within a dedicated pit excavated in the floor. This design allows the V-shaped platform carrying the coil to descend flush with the surrounding floor level.
- Operational Principle: The primary mechanism involves a hydraulic cylinder positioned beneath the V-table. This cylinder provides vertical lift, raising the coil from floor level to the required transfer height or lowering it for unloading. A self-contained power unit typically drives the hydraulics and the four-wheel drive system, ensuring maneuverability within the confined pit area.
- Advantages: The most significant benefit is space efficiency, as the car retracts below floor level when not in use, leaving the area clear. This design facilitates ergonomic loading and unloading at floor level and integrates smoothly with automated systems like conveyors or robotic arms. The vertical lift is efficient, and features like single-point lubrication and heavy-duty bearings minimize downtime and maintenance.
- Disadvantages: The main drawback is the requirement for civil works – the installation of a floor pit. This can represent a significant initial cost and complexity, especially when retrofitting existing facilities. Maintenance access to the pit itself is also a consideration. Flexibility is limited, as the car is confined to the pit area.
| Feature | Description | Advantages | Disadvantages | Best Suited For |
|---|---|---|---|---|
| Structure | Cylinder beneath V-table, self-contained power unit, 4-wheel drive | Space-saving, efficient vertical lifting, high maneuverability | Requires floor pit installation, potentially higher initial cost | Automated lines, space-constrained facilities, systems needing floor-level access |
| Operation | Vertical lifting via cylinder, single-point lubrication, bearings | Minimized downtime, reduced maintenance, enhanced durability | Limited flexibility for non-pit areas | High-throughput environments, integration with automated machinery |
| Key Application | Integrating rewinder/packing line where pit is feasible | Seamless integration, ergonomic loading/unloading, optimized workflow | Installation limitations, pit maintenance | New facility designs, major line upgrades |
Loading/Unloading Car: The Versatile Workhorse
Loading/Unloading Coil Cars offer superior flexibility and are specifically designed for interaction with machinery like uncoilers and recoilers, where coils need to be precisely positioned onto mandrels or removed after processing. They operate above floor level, typically on rails or guided paths.
- Operational Principle: These cars feature a more complex structure, often incorporating a mast-type elevating assembly. The V-platform is mounted on this mast and lifted/lowered via hydraulic cylinders. Anti-friction cam rollers guide the vertical movement smoothly. Horizontal traversal is usually achieved via a hydraulic motor driving flanged wheels along rails or a defined path, often using a chain and sprocket system.
- Advantages: Their primary advantage is versatility. They don't require pit installation and can be integrated more easily into existing layouts or used across multiple points in a facility. They excel at precisely positioning coils for loading onto or unloading from machine mandrels. The robust welded steel plate construction ensures durability.
- Disadvantages: The mast structure makes them inherently less space-efficient than pit types when considering vertical clearance. The increased complexity can potentially lead to higher maintenance requirements compared to the simpler pit design. Maneuvering space might be a greater constraint depending on the guidance system (e.g., fixed rails).
| Feature | Description | Advantages | Disadvantages | Best Suited For |
|---|---|---|---|---|
| Structure | Welded steel plate mast, V-platform, anti-friction cam rollers, wheels | Robust construction, secure holding, smooth vertical/horizontal movement | More complex structure, potentially higher maintenance | Versatile layouts, integration with existing lines, varied coil handling points |
| Operation | Hydraulic cylinder lifting, hydraulic motor traversal, chain/sprocket | Precise coil positioning, controlled movement, reliable operation | May require more space for maneuvering | Flexible manufacturing cells, lines needing loading/unloading at different points |
| Key Application | Receiving, positioning, loading/unloading coils from uncoilers/recoilers | Adaptable to different machinery, facilitates transfer, enhances workflow | Potentially less space-efficient than pit type for specific layouts | Retrofitting existing lines, diverse coil handling needs |
Making the Choice: The decision between a Pit Type and a Loading/Unloading car hinges on a careful evaluation of your facility's layout (available space, floor level requirements), production volume (throughput needs), existing infrastructure, level of automation desired, and specific integration points (floor transfer vs. machine loading). Choosing correctly maximizes efficiency, ensures ergonomic operation, and upholds safety standards in your steel coil handling process.
AGV Coil Cars: Automating for the Future
Imagine a factory floor where heavy steel coils move autonomously, precisely, and safely without constant human intervention. Step into the reality of advanced manufacturing with AGV Coil Cars. These robotic vehicles navigate your facility with intelligence, transforming material transport and boosting operational efficiency.
Automated Guided Vehicle (AGV) coil cars are robotic transport systems engineered for the autonomous movement of heavy steel coils. Utilizing advanced navigation like lasers or sensors, they follow predetermined paths, significantly enhancing safety by minimizing manual handling, boosting efficiency through continuous operation, and reducing labor costs. These systems optimize material flow and minimize damage risk within manufacturing plants and service centers.
Dive Deeper: Unveiling the Advantages and Implementation Factors of AGV Coil Cars
AGV coil cars represent a significant leap forward in internal logistics for steel handling, offering a compelling suite of benefits that address key challenges in safety, efficiency, and cost.
Transformative Advantages:
- Increased Efficiency: Automation is the heart of AGV efficiency. Unlike manual transport or traditional driven vehicles, AGVs operate 24/7 without breaks, shift changes, or fatigue. They follow optimized paths, minimizing travel time and eliminating bottlenecks often associated with waiting for operators or equipment. This continuous, predictable material flow significantly speeds up production cycles, increases throughput, and reduces idle time for processing machinery like rewinders and packing lines. The result is a more streamlined and productive operation.
- Enhanced Safety: Heavy industry prioritizes safety, and AGVs make a substantial contribution. By automating the transport of multi-ton steel coils, they drastically reduce the need for manual handling or forklift operations in potentially congested areas. This eliminates risks associated with manual lifting injuries, collisions between forklifts and personnel or infrastructure, and errors in maneuvering heavy loads. Integrated safety sensors (like LiDAR, bumpers, ultrasonic sensors) allow AGVs to detect obstacles and stop safely, creating a inherently safer working environment.
- Versatility and Adaptability: AGV coil cars are not limited to specific coil sizes. They are typically designed with adjustable V-shape cradles or other adaptable load-handling interfaces to accommodate a wide range of coil diameters and weights (often up to 50 tons or more). This flexibility allows facilities to handle diverse product lines and adapt to changing production requirements without needing entirely different transport systems. Their programming allows paths and destinations to be easily modified, offering greater adaptability than fixed conveyor systems.
- Damage Reduction: Steel coils, especially finished products like cold-rolled steel, are susceptible to damage from rough handling. AGVs provide smooth, controlled acceleration, deceleration, and movement. Secure cradling mechanisms prevent coils from shifting, vibrating excessively, or suffering impacts during transit. This careful handling significantly minimizes the risk of dents, scratches, edge damage, or ovalization, reducing material waste, maintaining product quality, and lowering scrap rates.
- Cost-Effectiveness and ROI: While the initial investment in an AGV system (including vehicles, navigation infrastructure, and integration) can be significant, the long-term economic benefits are compelling. Reduced labor costs for transport tasks are immediate. Enhanced efficiency boosts overall productivity. Minimized material damage cuts down on waste and rework expenses. Reduced workplace accidents lower insurance premiums and associated costs. Optimized energy consumption compared to constantly running conveyors can also contribute. Over time, these factors typically lead to a strong return on investment (ROI) and improved profitability.
- Scalability and Integration: AGV systems are inherently scalable. Additional vehicles can be added to the fleet as production demands grow. They integrate seamlessly with Warehouse Management Systems (WMS), Manufacturing Execution Systems (MES), and ERP systems, enabling real-time tracking, automated task assignment, and data-driven process optimization, aligning with Industry 4.0 principles.
Implementation Considerations: Beyond the benefits, successful AGV deployment requires careful planning regarding navigation systems (laser guidance, magnetic tape, vision-based), floor conditions, charging strategies (opportunity charging vs. battery swapping), traffic management in mixed environments (where AGVs and manual vehicles/personnel coexist), maintenance protocols, and robust integration with existing control systems.
In essence, AGV coil cars offer a pathway to a smarter, safer, and more efficient future for steel coil handling, driving operational excellence and competitiveness.
Understanding Coil Car Technical Characteristics
What truly defines a coil car's capability beyond its basic type? The answer lies in its technical characteristics. These specifications dictate performance, safety, and suitability for specific tasks and environments. Selecting the right coil car demands a clear understanding of these critical details to match the machine to your operational reality.
Coil car technical characteristics encompass a wide array of specifications, including but not limited to load capacity, physical dimensions, power source options (battery, grid, diesel), travel speed, drive motor types (AC, hydraulic), command systems (remote, touch panel, WMS integration), wheel configurations, lifting deck availability and stroke, operating environment suitability (indoor/outdoor/hazardous), and vital safety devices. These are often customizable to meet precise steel coil handling requirements.
Dive Deeper: A Technical Deep Dive: Decoding Coil Car Specifications
Choosing the optimal coil car involves a meticulous review of its technical specifications. These details determine how effectively, safely, and reliably the car will perform within your specific operational context. Let's examine the key characteristics:
| Specification | Range/Options | Key Considerations | Impact on Operation |
|---|---|---|---|
| Capacity | 1 ton to 50 tons+ (customizable) | Max coil weight, material density, future needs, safety factor (e.g., 1.25x) | Determines the maximum load the car can handle safely and efficiently, prevents overloading. |
| Dimensions (L x W x H) | Fully Customizable | Facility layout (aisle width, turning radii), door heights, integration points, coil size | Ensures the car fits within the workspace, can maneuver effectively without collisions, and aligns with equipment. |
| Power Supply | Battery, Electric Grid (Cable Reel/Conductor Bar), Diesel, Hydraulic | Indoor/outdoor use, duty cycle, availability of power, emissions regulations, noise limits | Influences operational cost (fuel/electricity), environmental impact, potential for continuous 24/7 operation. |
| Travel Speed | 1 km/h to >12 km/h (customizable, often regulated) | Production line speed, travel distance, safety regulations (pedestrian areas), floor conditions | Affects cycle times, overall throughput, integration smoothness with production flow, stopping distances. |
| Drive Motors | AC Electric, DC Electric, Hydraulic, Pneumatic | Load weight, required speed/acceleration, control precision, environment (e.g., EX), maintenance | Determines power output, responsiveness, fine positioning capability, suitability for specific applications. |
| Command System | Pendant Control, Radio Remote, Touch Panel, PLC, WMS/ERP Integration | Level of automation desired, operator interface preference, integration complexity, data needs | Influences ease of use, control precision, potential for full automation, data tracking for Industry 4.0. |
| Kind of Wheels | Steel (Rail), Polyurethane (Trackless), Solid Rubber | Floor type (concrete, rail), load capacity, surface condition, wear resistance, noise level | Dictates mobility type (fixed path vs. flexible), load distribution on floor, maintenance, traction. |
| Lifting Deck | Optional (Stroke from 50 mm+, customizable) | Need for vertical movement, integration height with machinery, precise positioning requirements | Facilitates seamless coil transfer between different heights, e.g., floor to uncoiler mandrel. |
| Operating Environment | Indoor, Outdoor, Offshore, High Temp, Freezer, EX | Ambient temperature, weather exposure, corrosive elements, explosion risk, dust levels | Ensures car materials, components, and sealing are suitable for longevity and safe operation in conditions. |
| Safety Devices | Laser Scanners (LiDAR), Bumpers, Ultrasonic Sensors, E-Stops, Lights, Alarms | Safety regulations (local/industry), workplace hazards, required detection range/field, personnel proximity | Critical for preventing collisions with obstacles, personnel, and equipment, ensuring safe operation. |
| Industry 4.0 Ready | Depends on Command System & Sensors | Data collection needs (usage, position, diagnostics), remote monitoring, predictive maintenance | Enables smart factory integration, data-driven optimization, remote troubleshooting, enhanced diagnostics. |
| Hazardous Area Conformity (EX) | On Request (ATEX, IECEx, etc.) | Presence of flammable gases, vapors, or dust; regulatory compliance (zone classification) | Ensures car is designed and certified for safe operation in potentially explosive atmospheres, preventing ignition. |
Strategic Selection: A thorough analysis of these technical characteristics is paramount. Consider not only your current needs but also future expansion plans and potential changes in coil specifications or process flow. Aligning these specifications precisely with your operational requirements ensures you invest in a coil car system that delivers maximum performance, reliability, safety, and long-term value for your steel coil handling operations. Misjudging a critical specification, like capacity or environmental suitability, can lead to inefficiency, premature failure, or unsafe conditions.
Integrating Coil Cars and Broader Safety Guidelines
Optimizing steel coil handling involves more than just the coil car itself; it requires seamless integration into the production workflow and adherence to comprehensive safety protocols governing every stage of movement, from transport vehicles to storage.
Effective coil car operations involve seamless integration (rewinder to packing), adherence to strict safety protocols (loading, transport, securing), proper equipment selection (V-shape, AGV), and understanding technical limits for safe, efficient material transport. Broader guidelines extend to securement during external transport (road/rail/sea) per regulations like the CTU Code, safe warehouse storage practices, and rigorous operator training on handling procedures.
Seamless Integration and Essential Safety Protocols
Achieving peak efficiency and safety in steel coil handling necessitates a two-pronged approach: integrating coil cars effectively within the production line and implementing robust safety guidelines that cover the entire handling lifecycle.
Achieving Seamless Integration:

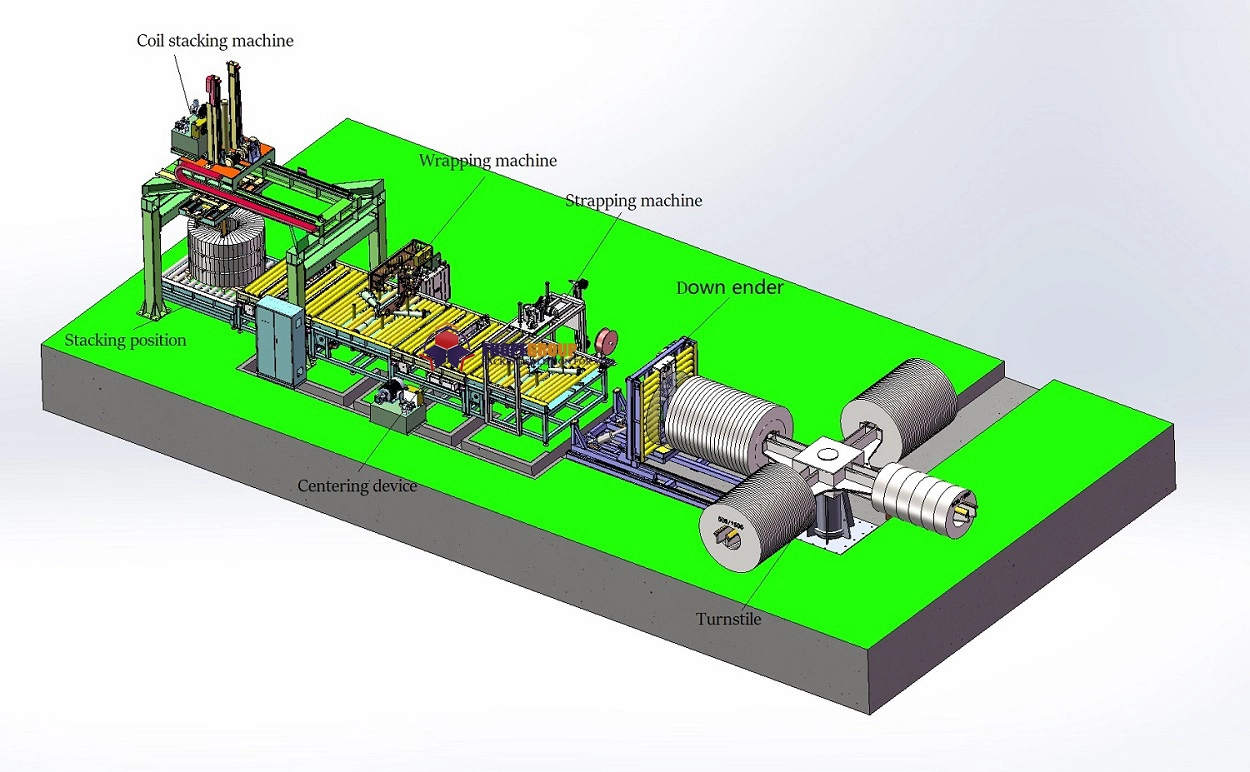

Integrating coil cars, whether V-shape or AGV, between key processes like rewinders/uncoilers and packing lines is crucial for creating a continuous, automated flow. Successful integration yields numerous benefits:
- Automated Material Flow: Eliminates manual transport steps, reducing delays and labor dependency.
- Enhanced Efficiency: Streamlines coil movement, shortens cycle times, and boosts overall line throughput.
- Reduced Labor Costs: Frees up personnel from transport tasks for more value-added activities.
- Improved Safety: Minimizes manual handling of heavy loads and reduces forklift traffic in production zones.
- Optimized Space Utilization: Efficient flow allows for potentially more compact line layouts.
- Minimized Damage: Controlled, automated transfers reduce the risk of impacts and handling errors.
Key factors for successful integration include:
- System Compatibility: Ensuring communication protocols (e.g., PLC handshakes, WMS commands) and physical interfaces (height, position) align between the coil car and associated machinery.
- Layout Planning: Designing clear, unobstructed pathways, adequate turning radii, and smooth transition points between stations. For AGVs, this includes navigation path setup and charging station placement.
- Control Integration: Linking coil car controls with the master line control system for synchronized, automated task execution.
- Safety Systems: Implementing interlocks, light curtains, and sensors to ensure safe interaction between the car, machinery, and any personnel in the area.
- Customization: Tailoring car specifications (speed, lift height, capacity) and the integration logic to the specific demands of the line.
Essential Safety Guidelines Across the Handling Lifecycle:
Safe operation extends far beyond the coil car's movement within the plant. Comprehensive guidelines must address:
-
Receiving and External Transport Securement (Ref: CINS, NYS Manual, Standard Club):
- Vehicle/Container Check: Before unloading from trucks or containers, inspect the transport unit for integrity and ensure the load hasn't shifted dangerously.
- Proper Securement: Understand and comply with regulations (e.g., 49 CFR Part 393, CTU Code) for securing coils during road, rail, or sea transport. This involves appropriate blocking, bracing, dunnage (quality timber, correct placement to distribute load and prevent floor overstress), and lashing techniques based on coil orientation (eye-to-sky, -side, -rear) and weight. Friction is key; avoid metal-on-metal where possible.
- Forces: Recognize the significant forces (forward deceleration, lateral, rearward acceleration) coils experience during transit and ensure securement can withstand them (e.g., 0.8g forward).
-
Loading/Unloading Procedures (Ref: Littell, Sheffield Metals):
- Competent Operators: Only trained and certified personnel should operate coil cars, forklifts, cranes, or C-hooks.
- Equipment Inspection: Regularly inspect lifting devices (forks, C-hooks, slings, coil grabs) for damage or wear. Check coil car safety features (brakes, E-stops, sensors).
- Safe Lifting: Ensure proper equipment rating for the coil weight. Use correct fork spacing/length or C-hook placement. Lift slowly, check balance, and avoid shock loading. Never exceed the Working Load Limit (WLL) of any component. Use appropriate attachments (coil rams) on forklifts.
- Clearance & Stability: Ensure adequate clearance for movement. Never load/unload unbanded or unstable coils. Follow defined safe loading/unloading sequences (e.g., positioning, spearing, securing retainers, controlled weight transfer).
- Damage Prevention: Avoid dropping coils (causes ovalization, dents). Protect edges and surfaces from scratches or impacts from equipment. Use edge protection with tiedowns if necessary.
-
Internal Transport (Coil Car Specific):
- Path Safety: Keep travel paths clear of obstructions and personnel. Adhere to designated speed limits.
- Load Security: Ensure the coil is securely seated in the V-cradle or on the AGV platform, utilizing any locking mechanisms.
- Environmental Awareness: Operate according to the car's environmental rating (indoor/outdoor, temperature).
- Safety Features: Regularly test safety scanners, bumpers, and emergency stops.
-
Storage (Ref: Sheffield Metals, CargoHandbook):
- Environment: Store coils in cool, dry, well-ventilated indoor areas to prevent condensation and corrosion (RH < 50-60% ideal).
- Surface: Keep coils off bare concrete; use skids or dunnage.
- Stacking: Adhere to safe stacking limits (e.g., slit coils max 3 high, masters max 2 high, eye-to-sky only unless racked). Place larger diameters at the bottom. Never stack other items on coils.
- Skid Condition: Use sound, unbroken skids. Replace damaged ones immediately.
- Protective Film (PVC): Remove film before prolonged UV or moisture exposure, or within the manufacturer's timeframe (e.g., 6 months) to prevent adhesion issues or breakdown.
By implementing these integrated operational and safety guidelines, facilities can ensure their steel coil handling processes are not only efficient and productive but also fundamentally safe for personnel, equipment, and the valuable materials being transported.
Conclusion
In summary, optimizing steel coil handling through coil cars transcends simple equipment acquisition. It demands a holistic strategy encompassing careful selection based on technical specifications and operational needs (V-shape vs. AGV), meticulous integration into production flows, and unwavering adherence to comprehensive safety guidelines. These guidelines cover everything from secure external transport loading and proper internal movement protocols to safe storage practices. By prioritizing robust procedures, appropriate technology, and thorough operator training, industries can significantly enhance workplace safety, minimize costly material damage, and unlock substantial gains in efficiency and productivity. Embracing these guidelines ensures efficient, productive, and safe [Coil car]() operations, ultimately strengthening the bottom line.
